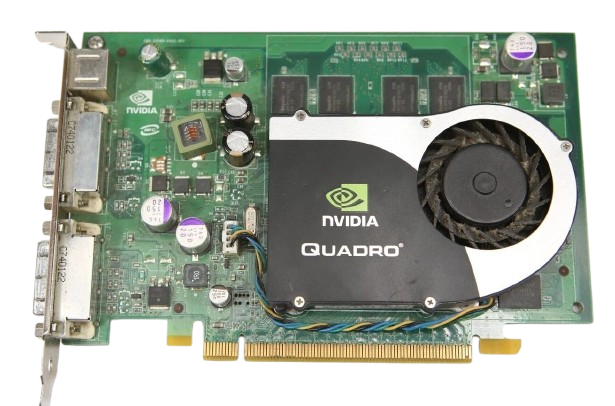

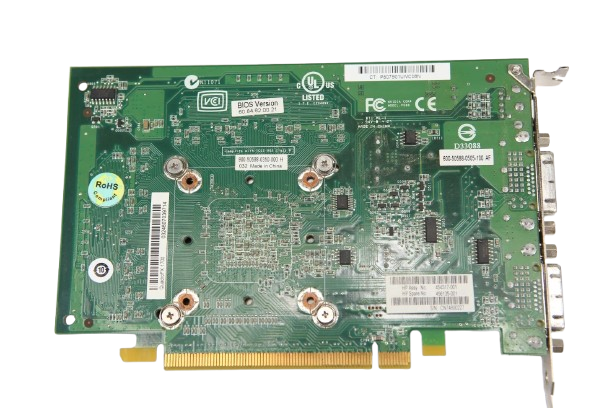

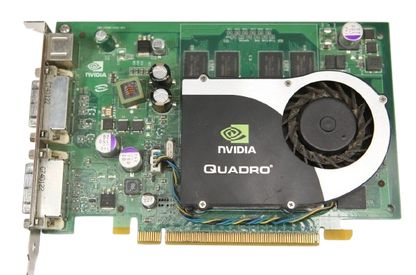

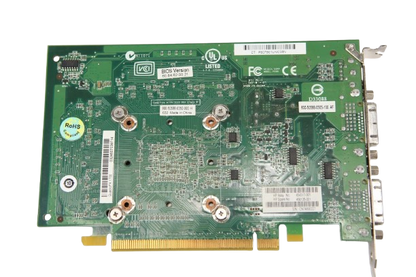

The HP NVIDIA Quadro FX 1700 512MB DDR2 Workstation Graphics Card (HP Part Number: 454317-001 / 456135-001) is an entry-to-mid-range professional 3D graphics solution engineered for legacy CAD design, digital content creation (DCC), and specialized corporate workstations. Powered by the NVIDIA G84 architecture with 32 CUDA cores, a 460 MHz core clock, and 512MB of DDR2 memory operating across a 128-bit bus, this single-slot GPU provides hardware-accelerated stability and reliable rendering for entry-level 2D/3D modeling applications.
Designed with wide compatibility for older enterprise systems, the Quadro FX 1700 features dual Dual-Link DVI-I outputs capable of driving two digital displays simultaneously at resolutions up to 2560 x 1600 @ 60Hz, alongside an S-Video TV-out connector. Operating via a PCI Express x16 interface, the card is highly energy efficient with a low 42W maximum power draw, requiring no external PCIe power connectors and running purely on slot-supplied power.
Available from DataDive, your trusted IT Hardware Supplier in Qatar, this original HP NVIDIA Quadro FX 1700 graphics adapter is an ideal replacement part for legacy workstation maintenance, industrial equipment systems, CAD design stations, and vintage computing setups.
Key Features:
-
Specialized workstation architecture featuring 32 CUDA cores optimized for legacy CAD and 3D modeling
-
512 MB DDR2 video memory over a 128-bit interface delivering dependable 2D/3D performance
-
Dual-display output via 2 x Dual-Link DVI-I ports supporting digital resolutions up to 2560 x 1600
-
Energy-efficient 42W maximum TDP operating entirely off motherboard PCIe slot power
-
Active single-slot fan and heatsink design ensuring quiet, dependable thermal management
-
Legacy software support with optimization for OpenGL 3.3, DirectX 10, and Shader Model 4.0
Technical Specifications:
-
Brand: HP / NVIDIA
-
GPU Series: NVIDIA Quadro FX Series
-
GPU Model: NVIDIA Quadro FX 1700 (G84GL)
-
HP Part Numbers (MPN): 454317-001 / 456135-001 / GP529AA
-
CUDA Cores / Shading Units: 32
-
Core Clock Speed: 460 MHz
-
Shader Clock Speed: 920 MHz
-
VRAM Capacity: 512 MB
-
VRAM Type: DDR2 SDRAM
-
Memory Interface Width: 128-bit
-
Memory Bandwidth: 12.8 GB/s
-
Host Interface: PCI Express 1.0 x16
-
Display Output Interfaces: 2 x Dual-Link DVI-I, 1 x S-Video (TV-Out)
-
Maximum Digital Resolution: Up to 2560 x 1600 @ 60Hz
-
Max Simultaneous Displays: 2 Displays (NVIDIA nView Supported)
-
APIs Supported: OpenGL 3.3, DirectX 10 / 11.1 (FL 10_0), Shader Model 4.0
-
Power Consumption (TDP): 42 Watts (No auxiliary power cable required)
-
Cooling Solution: Active Single-Slot Fansink
-
Form Factor: Single-Slot, Standard / High Profile
-
Application / Compatibility: Legacy Desktop Workstations, Industrial Maintenance, 2D/3D CAD Systems, and Enterprise Workspaces
