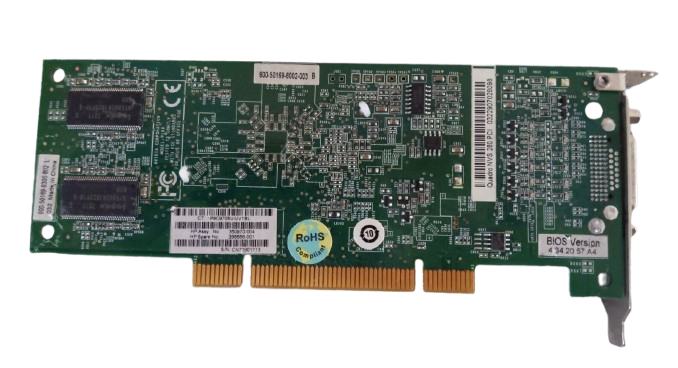

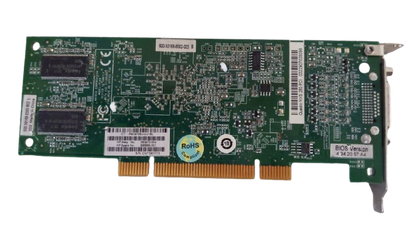

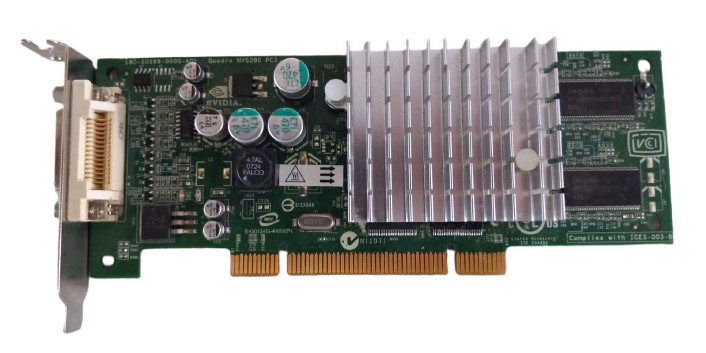

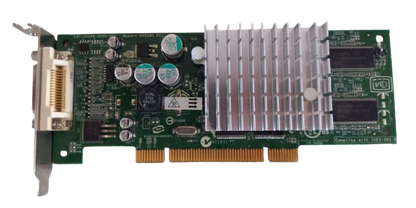

The HP NVIDIA Quadro NVS 280 64MB DDR Graphics Card (HP Part Number: 398686-001) is a low-profile, legacy enterprise video adapter engineered for multi-display business environments and industrial workstation maintenance. Powered by NVIDIA's NV34 architecture with a 250 MHz core clock and 64MB of DDR memory on a 64-bit bus, this card delivers steady 2D rendering and reliable multi-monitor desktop management for legacy HP and Compaq enterprise desktop systems.
Designed specifically for systems requiring standard legacy PCI expansion, the Quadro NVS 280 features a single DMS-59 flex connector. Utilizing a DMS-59 breakout Y-splitter cable, the card drives two independent analog or digital displays simultaneously at resolutions up to 2048 x 1536 (VGA) or 1600 x 1200 (DVI). It incorporates a fanless, passive heatsink cooling solution for completely silent operation in noise-sensitive business spaces.
Available from DataDive, your trusted Commercial IT Hardware Supplier in Qatar, this original HP NVIDIA Quadro NVS 280 is featured in our GPU / Accelerator collections, providing an essential replacement part for legacy system maintenance, vintage desktop configurations, and specialized dual-display office terminals.
Key Features:
-
Legacy PCI bus interface designed for older standard PCI expansion slots
-
64 MB DDR SDRAM dedicated memory for efficient multi-window 2D desktop productivity
-
DMS-59 port providing dual-monitor support via breakout Y-splitter cables (to dual DVI or dual VGA)
-
Fanless passive cooling design ensuring 100% silent operation and zero mechanical maintenance
-
Ultra-low power consumption drawing a maximum of 13W directly from the PCI slot
-
Low-profile form factor supplied with bracket options for flexible system chassis integration
Technical Specifications:
-
Brand: HP / NVIDIA
-
GPU Series: NVIDIA Quadro NVS Series
-
GPU Model: NVIDIA Quadro NVS 280 (NV34B / NV34GL)
-
HP/Compaq Part Number (MPN): 398686-001
-
VRAM Capacity: 64 MB
-
VRAM Type: DDR SDRAM
-
Memory Interface Width: 64-bit
-
GPU Core Clock Speed: 250 MHz
-
Memory Clock Speed: 200 MHz (400 Mbps effective)
-
Host Interface: Standard Legacy PCI (Not PCIe compatible)
-
Video Output Connector: 1 x DMS-59 Flex Connector
-
Max Simultaneous Displays: 2 Independent Displays (via DMS-59 Y-splitter)
-
Max Analog Resolution (VGA): 2048 x 1536 @ 75Hz
-
Max Digital Resolution (DVI): 1600 x 1200 @ 60Hz
-
APIs Supported: Hardware DirectX 9.0a, OpenGL 1.5, Shader Model 2.0a
-
Power Consumption (TDP): 13 Watts maximum (Slot-powered)
-
Cooling Solution: Passive Aluminum Heatsink (Fanless)
-
Form Factor: Low Profile (2.586 x 6.6 inches)
-
OS Compatibility: Wi
