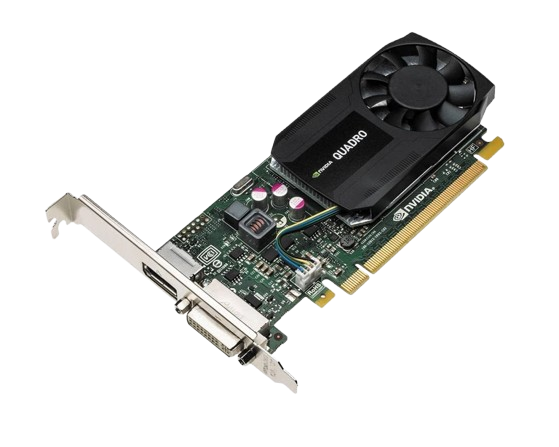

The HP NVIDIA Quadro K620 2GB DDR3 Graphics Card (HP Part Numbers: 765147-001 / 764898-001) is a professional workstation-grade GPU built on NVIDIA's Maxwell graphics architecture. Equipped with 384 CUDA cores and 2GB of DDR3 dedicated video memory on a 128-bit bus, this card delivers responsive 3D application performance and fluid visual handling for entry-level CAD modeling, architectural drafting, and digital content creation.
Engineered for integration into enterprise systems such as HP Z-Series workstations and business desktops, the Quadro K620 natively supports dual-monitor configurations via one DisplayPort 1.2 and one DVI-D output. It supports high-resolution multi-display setups with certified application stability across industry-standard design tools like AutoCAD and SolidWorks. Operating via a PCI Express slot, the GPU features a power-efficient 45W maximum TDP that runs entirely on slot power without auxiliary power cables.
Available from DataDive, your trusted Technology Hardware Supplier in Qatar, this original HP NVIDIA Quadro K620 is featured in our GPU / Accelerator collections, offering an ideal expansion or replacement solution for entry-level design workstations, multi-display office setups, and 2D/3D CAD systems.
Key Features:
-
Maxwell GPU architecture with 384 CUDA cores engineered for entry-level 3D design tasks
-
2 GB DDR3 dedicated frame buffer memory for fluid handling of assemblies and drawings
-
Native dual-display output featuring 1 x DisplayPort 1.2 and 1 x DVI-D port
-
Slot-powered 45W low power consumption running directly off the PCIe bus without extra cables
-
Active cooling assembly with integrated heatsink and quiet axial fan for thermal reliability
-
Certified application support for major 2D/3D software platforms including OpenGL and DirectX
Technical Specifications:
-
Brand: HP / NVIDIA
-
GPU Series: NVIDIA Quadro Series
-
GPU Model: NVIDIA Quadro K620
-
HP Part Numbers (MPN): 765147-001 / 764898-001
-
HP Option Part Number: J3G87AA
-
GPU Architecture: NVIDIA Maxwell
-
CUDA Cores: 384
-
VRAM Capacity: 2 GB
-
VRAM Type: DDR3 SDRAM
-
Memory Interface: 128-bit
-
Host Interface: PCI Express 2.0 / 3.0 x16
-
Display Output Ports: 1 x DisplayPort 1.2, 1 x Dual-Link DVI-D
-
Max Simultaneous Displays: 2 Independent Displays
-
Power Consumption (TDP): 45 Watts (No auxiliary power cable required)
-
Cooling Solution: Active Single-Slot Fan with Heatsink
-
Form Factor: Low Profile / Full Height Bracket Available
-
Application / Compatibility: HP Z-Series Workstations (e.g., Z440, Z640), Enterprise Desktop PCs, 2D/3D CAD Workstations, and Dual-Monitor Office Stations
