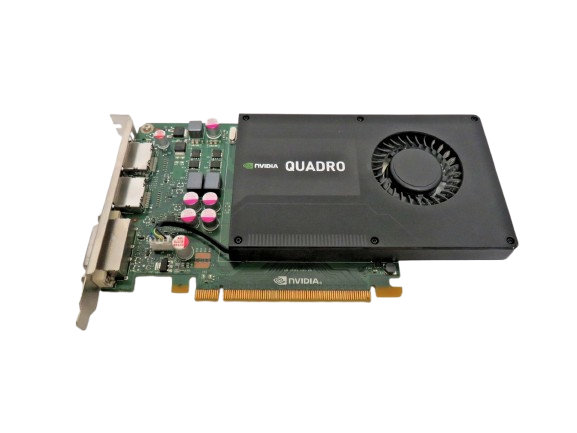

The Lenovo NVIDIA Quadro K2000 2GB GDDR5 Workstation Graphics Card (Lenovo FRU: 03T8310 / 03T8316) is a professional 3D graphics solution engineered for CAD, architectural design, and digital content creation workflows. Built on NVIDIA's Kepler GPU architecture with 384 CUDA cores and 2GB of GDDR5 dedicated memory across a 128-bit interface, it delivers up to 64.0 GB/s of memory bandwidth to ensure fast, responsive performance when rendering detailed assemblies and visual models.
Designed for seamless deployment in enterprise desktop systems such as the Lenovo ThinkStation S30, C30, and D30 series, the Quadro K2000 supports up to three independent displays simultaneously. Connectivity includes two DisplayPort 1.2 outputs supporting up to 3840 x 2160 @ 60Hz and one Dual-Link DVI-I port supporting resolutions up to 2560 x 1600 @ 60Hz. Operating via a PCI Express 2.0 x16 interface, this single-slot card maintains an efficient 51W maximum power draw, running entirely on slot power without requiring external 6-pin power cables.
Procured directly through DataDive, your trusted Workstation Hardware Supplier in Qatar , this original Lenovo NVIDIA Quadro K2000 graphics adapter is featured in our GPU / Accelerator collections, providing an essential upgrade or exact replacement part for professional 3D CAD stations, multi-display engineering desks, and legacy workstation fleets.
Key Features:
-
NVIDIA Kepler GPU architecture with 384 CUDA cores designed for certified 3D CAD stability
-
2 GB GDDR5 video memory with 64.0 GB/s bandwidth for smooth assembly manipulation
-
Triple-display support driving up to 3 independent monitors via 2 x DisplayPort 1.2 and 1 x Dual-Link DVI-I
-
Slot-powered 51W low power design running directly off the PCIe slot without external power cords
-
Ultra-quiet active single-slot cooling fan with integrated heatsink for reliable thermal control
-
ISV certified for major professional software with support for CUDA, DirectX 11, and OpenGL 4.3 APIs
Technical Specifications:
-
Brand: Lenovo
-
GPU Series: NVIDIA Quadro Series
-
GPU Model: NVIDIA Quadro K2000 / K2000D
-
Lenovo FRU / Part Numbers: 03T8310, 03T8316, 11200766
-
Alternate OEM Part Number: 700103-001
-
GPU Architecture: NVIDIA Kepler
-
CUDA Cores: 384
-
VRAM Capacity: 2 GB
-
VRAM Type: GDDR5
-
Memory Interface Width: 128-bit
-
Memory Bandwidth: 64.0 GB/s
-
Host Interface: PCI Express 2.0 x16
-
Display Output Ports: 2 x DisplayPort 1.2, 1 x Dual-Link DVI-I
-
Max Simultaneous Displays: 3 Independent Displays
-
Max Display Resolution: 3840 x 2160 @ 60Hz (DP 1.2) / 2560 x 1600 @ 60Hz (DVI)
-
APIs Supported: CUDA, DirectX 11 (FL 11_0), OpenGL 4.3, Shader Model 5.0, OpenCL
-
Power Consumption (TDP): 51 Watts (No external power cable required)
-
Cooling Solution: Active Single-Slot Fansink
-
Form Factor: Single-Slot, Standard Height
-
Application / Compatibility: Lenovo ThinkStation S30/C30/D30, Professional CAD/CAM Stations, 3D Rendering Workstations, and Multi-Monitor Desktops
