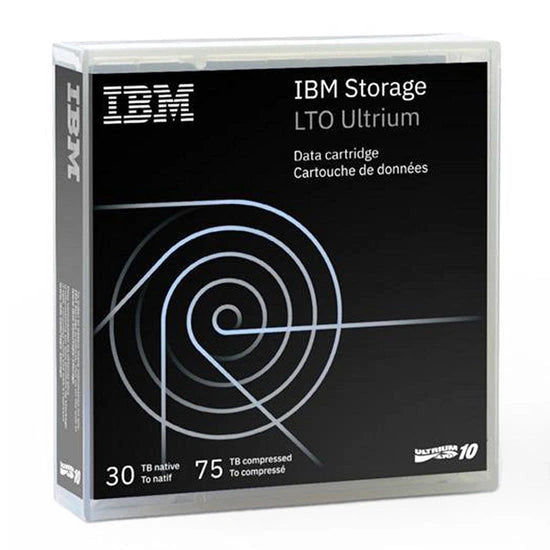

The IBM LTO-10 Ultrium Data Cartridge (IBM Part Number: 03PL170) is an enterprise-class offline tape storage solution engineered for long-term data preservation, rapid disaster recovery, and air-gapped ransomware protection. Delivering 30 TB of native capacity and up to 75 TB of compressed storage (2.5:1 ratio) per cartridge, it provides 122% more capacity than LTO-8 systems. Built using advanced Strontium Ferrite (SrFe) magnetic particles across 15,104 data tracks, this media ensures superior signal integrity, long-term stability, and continuous reliability for large-scale enterprise backup operations.
Designed to meet strict LTO Generation 10 specifications, the IBM 03PL170 cartridge achieves native data transfer speeds up to 400 MB/s (and up to 1,100 MB/s compressed), enabling fast backup and restore windows. It features drive-level AES 256-bit hardware encryption and optional WORM (Write Once, Read Many) support to prevent unauthorized editing or deletion. Fully compatible with IBM Spectrum Archive and the Linear Tape File System (LTFS), file management becomes as intuitive and simple as browsing standard computer directories. With zero power required at rest, it provides an energy-efficient, eco-friendly archival platform with a 30-year shelf life.
Available from DataDive, your trusted Technology Hardware Supplier in Qatar, this original IBM LTO-10 Ultrium Data Cartridge delivers a highly secure, reliable, and low-TCO tape backup solution for enterprise data centers, government archives, and compliance storage facilities.
Key Features:
-
Massive capacity delivering 30 TB native and up to 75 TB compressed (2.5:1 ratio) storage per cartridge
-
High-density Strontium Ferrite (SrFe) magnetic formulation for enhanced archival stability
-
Fast transfer speeds reaching up to 400 MB/s native and up to 1,100 MB/s compressed
-
Enterprise security featuring native AES 256-bit hardware encryption and WORM compliance options
-
Seamless file management supporting LTFS and IBM Spectrum Archive index structures
-
Sustainable offline storage offering zero power draw at rest and up to a 30-year archival life
Technical Specifications:
-
Brand: IBM
-
Media Type: LTO Ultrium 10 (Generation 10 Re-writable)
-
IBM Part Number (MPN): 03PL170
-
Native Capacity: 30 TB
-
Compressed Capacity: Up to 75 TB (2.5:1 Compression)
-
Magnetic Material: Strontium Ferrite (SrFe)
-
Number of Data Tracks: 15,104 tracks
-
Native Transfer Rate: Up to 400 MB/s
-
Compressed Transfer Rate: Up to 1,000 MB/s to 1,100 MB/s
-
Encryption Standard: AES 256-bit Hardware Encryption
-
File System Support: LTFS (Linear Tape File System) & IBM Spectrum Archive
-
Archival Life: Up to 30 Years
-
Cartridge Color: Black
-
Tape Width: 12.65 mm
-
Tape Length: 1,035 m
-
Tape Thickness: 5.2 µm
-
Drive Compatibility: LTO-10 Tape Drives and Automated Libraries
-
Application / Compatibility: Enterprise Data Backup, IBM Spectrum Archive Clusters, Government Offsite Archives, and Long-Term Compliance Storage
