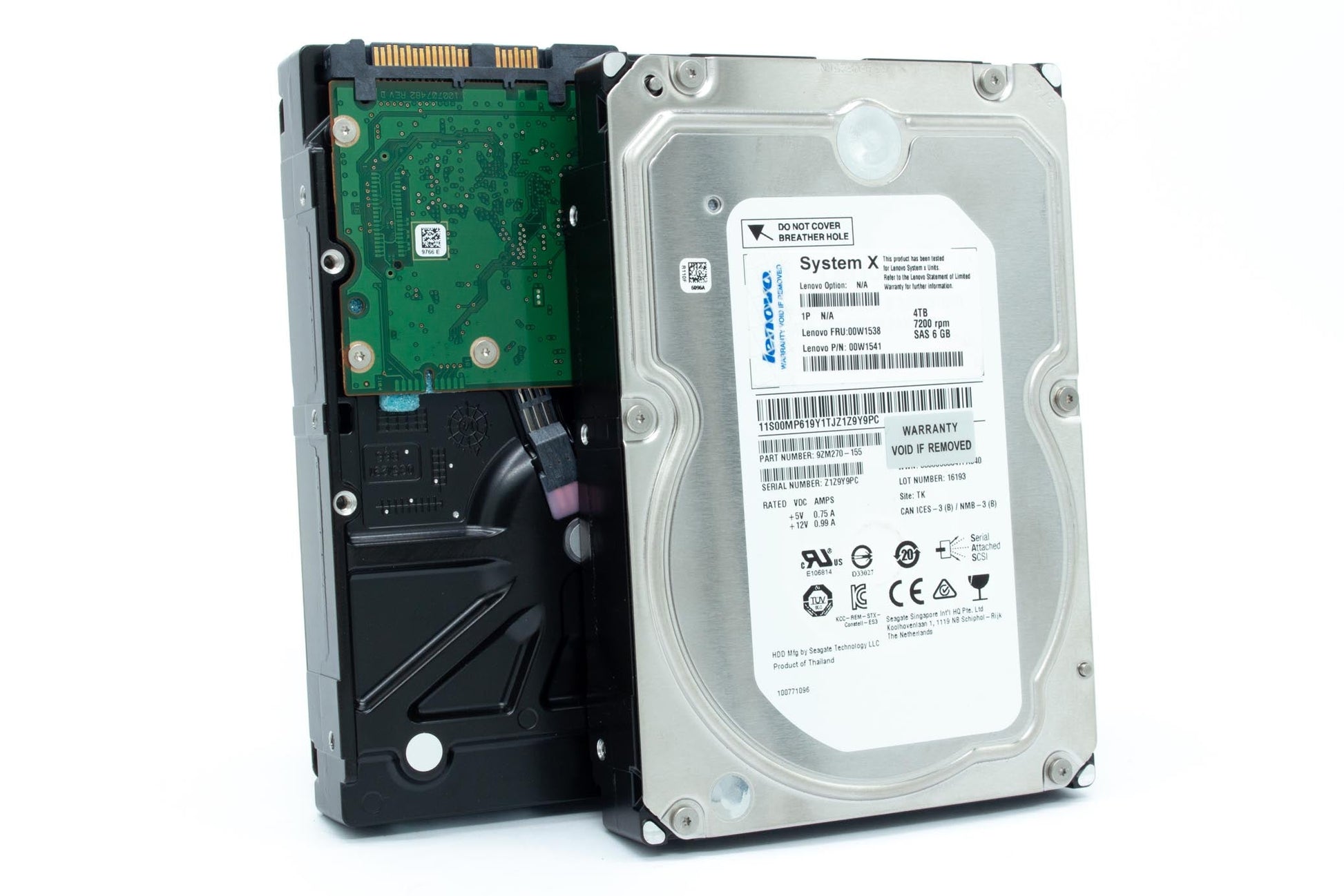

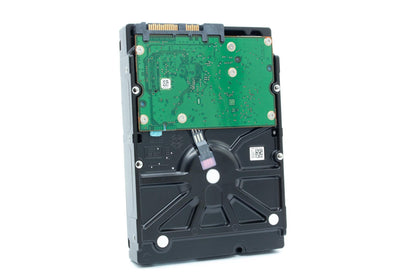

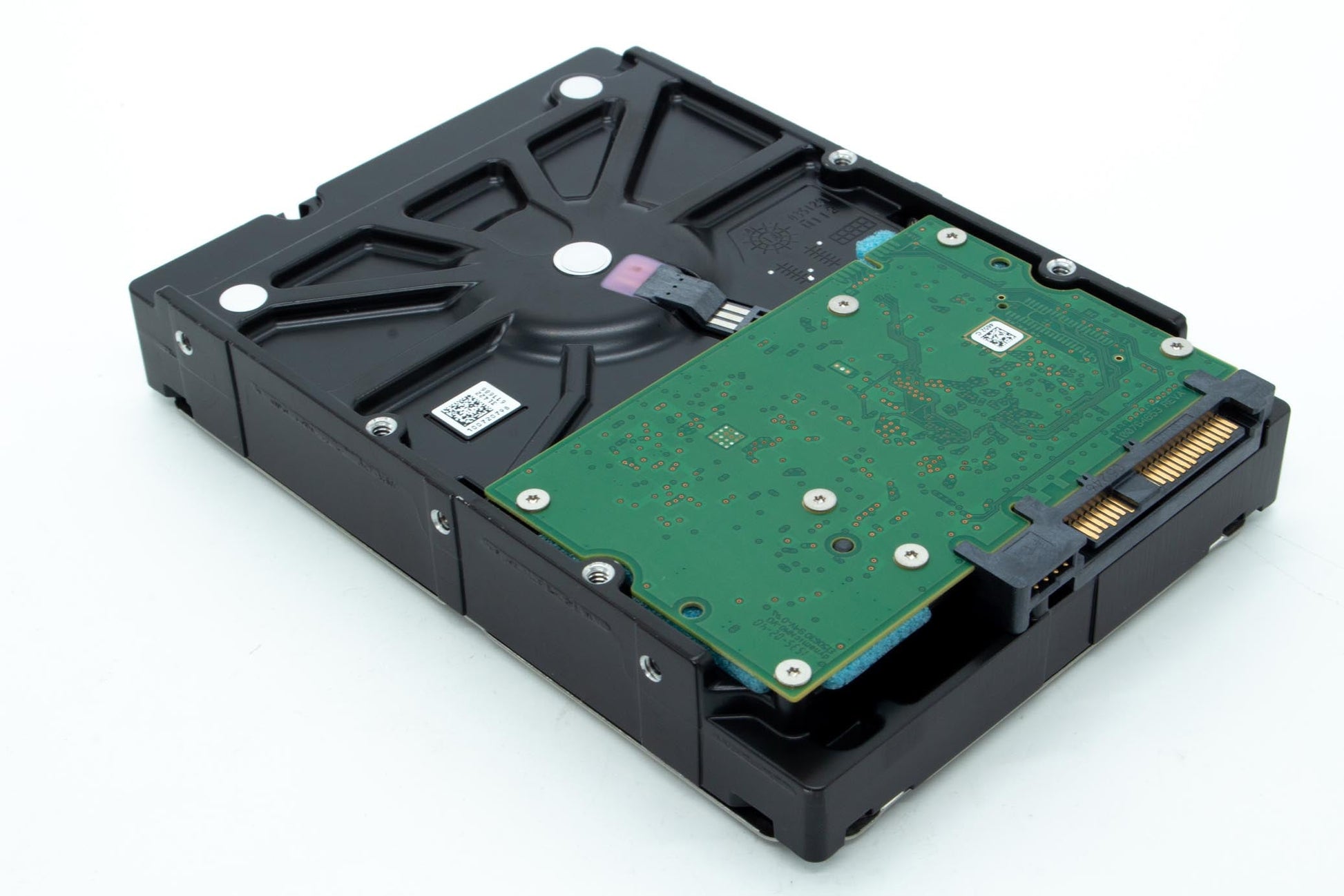

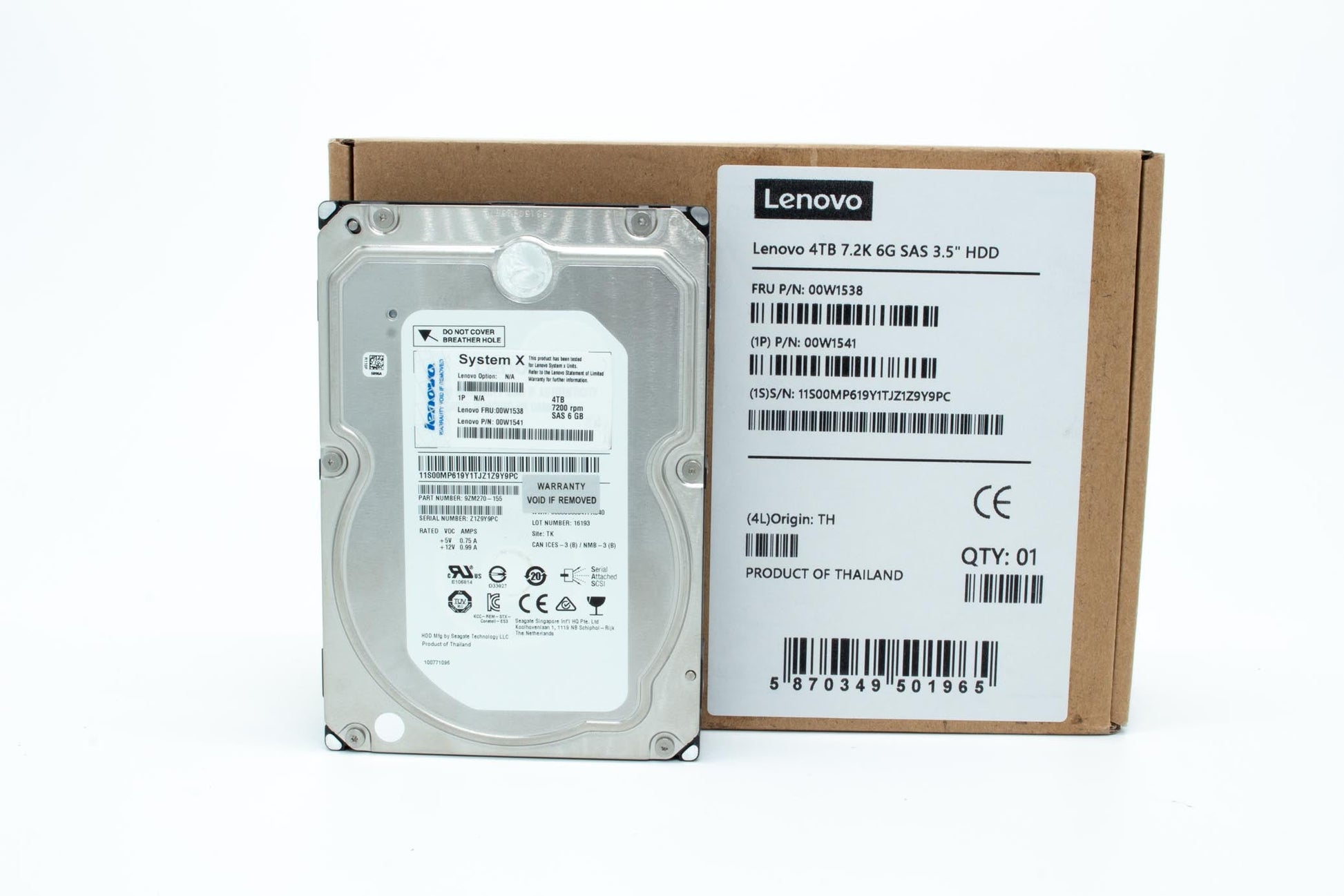

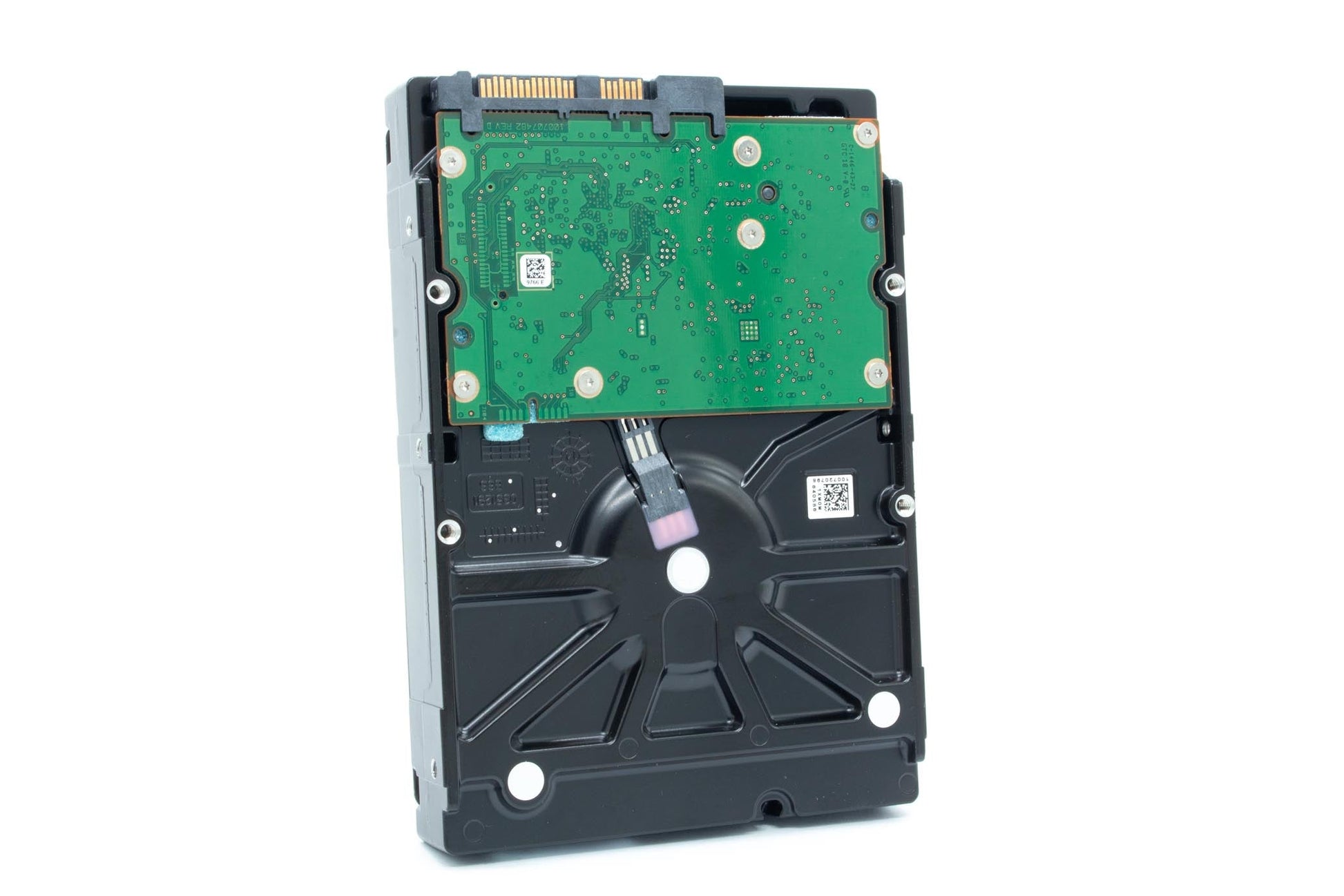

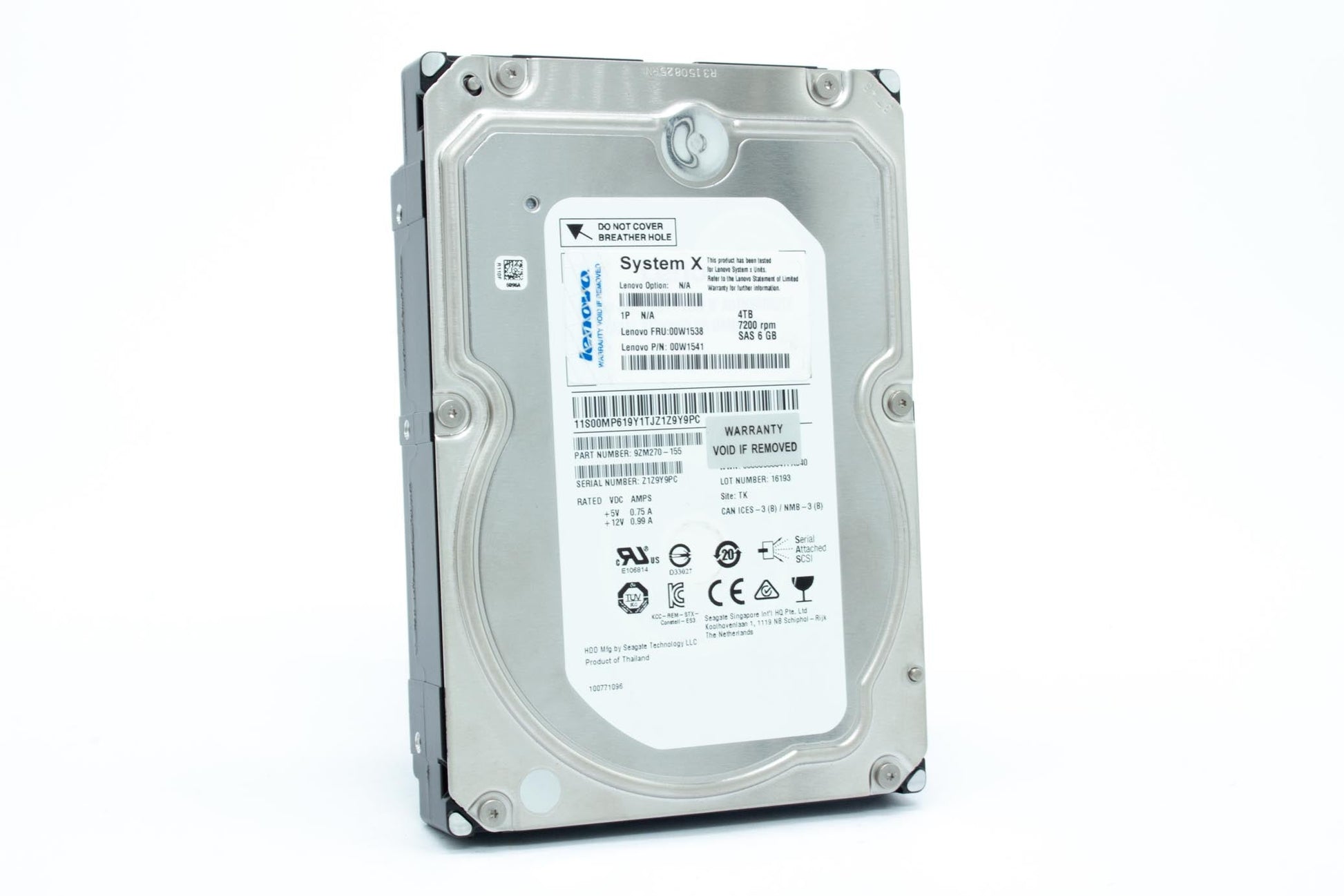

The IBM 4TB 7.2K 6Gb/s Nearline SAS Hard Drive (Option Part Number: 00W1538 / FRU: 00W1541 / Feature Code: A2XF) is a high-capacity 3.5-inch Large Form Factor (LFF) enterprise-class internal hard drive designed for IBM System x servers and enterprise storage systems. Built for data-intensive storage workloads, it combines high storage density with enterprise-grade reliability and performance.
Operating at a 7200 RPM rotational speed with a 128 MB cache buffer and a high-speed SAS 6Gb/s interface, this NL-SAS drive delivers data transfer rates up to 600 MB/s. It blends the high capacity of SATA architectures with the robust dual-port connectivity, error recovery, and data integrity features of the SAS protocol.
Available from DataDive, a leading server and enterprise IT hardware supplier in Qatar, this original IBM enterprise hard drive offers seamless server integration, trusted 24/7 reliability, and continuous performance for data centers, RAID arrays, and server storage expansion.
Key Features:
-
Enterprise 4 TB capacity for high-density server and storage expansion
-
High-speed SAS 6Gb/s interface delivering data transfer speeds up to 600 MB/s
-
7200 RPM rotational speed with 128 MB cache buffer for fast data access
-
Nearline SAS (NL-SAS) technology combining high capacity with enterprise SAS reliability
-
Standard 3.5-inch Large Form Factor (LFF) for broad IBM server enclosure compatibility
-
Fully compatible with IBM System x-Series servers and enterprise storage systems
Technical Specifications:
-
Brand: IBM
-
Option Part Number: 00W1538
-
FRU / Replacement Number: 00W1541 / 00W1540
-
Feature Code: A2XF
-
Product Type: Enterprise Internal Nearline SAS Hard Drive
-
Capacity: 4 TB
-
Form Factor: 3.5-inch Large Form Factor (LFF)
-
Interface: SAS 6Gb/s (Serial Attached SCSI)
-
Spindle Speed: 7200 RPM
-
Cache Buffer: 128 MB
-
Data Transfer Speed: Up to 600 MB/s (6 Gbps)
-
Application / Compatibility: IBM System x Servers, Enterprise RAID Arrays, Data Centers, and Storage Enclosures
