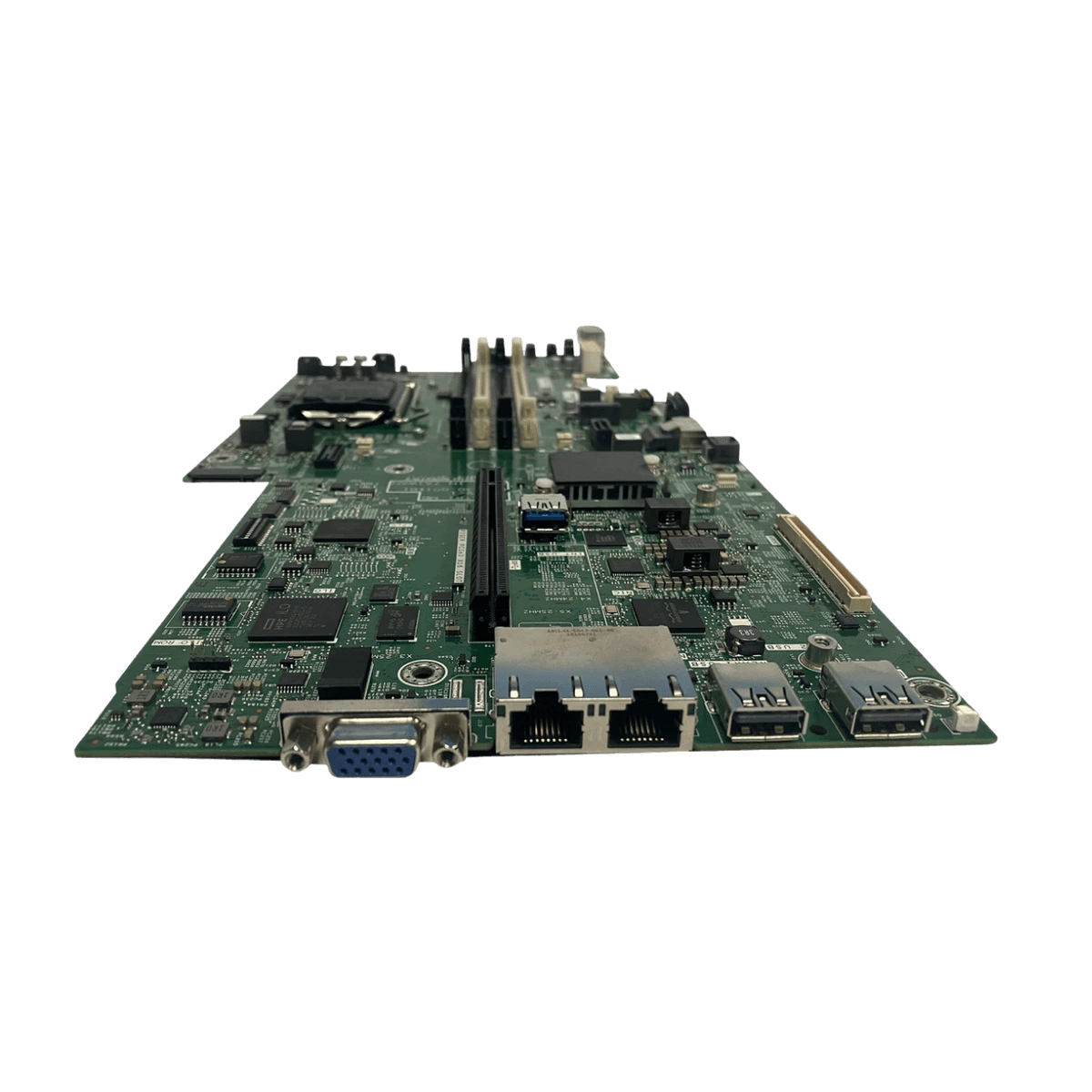

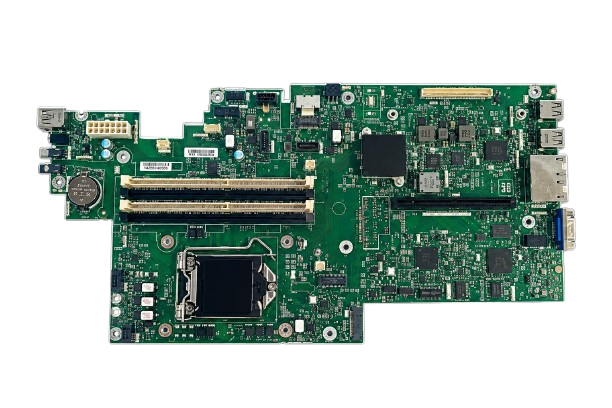

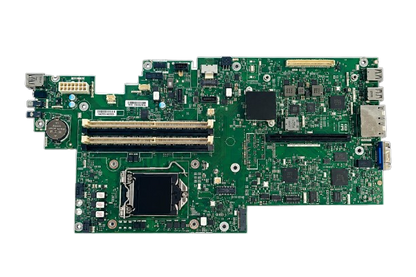

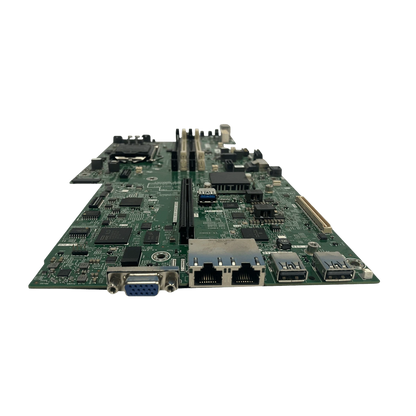

The HPE ProLiant DL20 Gen10 Server System Board Motherboard (P07884-001 / P06922-001) is an original OEM replacement mainboard engineered to deliver enterprise-grade performance, low latency, and reliability for HPE 1U short-depth rack servers. Powered by the Intel C246 chipset and housing a single LGA1151 socket, this system board supports Intel Xeon E-2100/E-2200 series processors as well as Core i3 and Pentium processors, making it an ideal core architecture for small business servers, edge computing nodes, and web hosting infrastructure.
Designed for optimal memory and expansion scalability in a compact chassis, the motherboard features four DDR4 Unbuffered ECC (UDIMM) memory slots supporting up to 64GB of RAM operating at speeds up to 2666MHz. It integrates dual 1GbE onboard NIC ports via the HPE Embedded 332i adapter, PCIe 3.0 expansion riser capabilities, and an onboard HPE Smart Array S100i SR Gen10 Software RAID controller for flexible SATA drive management.
Available from DataDive, your trusted Technology Hardware Supplier in Qatar, this genuine HPE ProLiant DL20 Gen10 system board is available in our Server Components collection, ideal for server maintenance, motherboard replacements, IT infrastructure repairs, and compact data center hardware support across HPE ProLiant DL20 Gen10 and HPE ProLiant ML30 Gen10 server series.
Key Features:
-
Single LGA1151 processor socket supporting Intel Xeon E-2100 / E-2200 and Core i3 series processors
-
Four DDR4 UDIMM slots supporting up to 64GB of Unbuffered ECC memory at speeds up to 2666MHz
-
Integrated HPE iLO 5 (Integrated Lights-Out) silicon root of trust management for advanced remote agentless monitoring
-
Onboard HPE Embedded 332i Dual-Port 1GbE network adapter for high-speed network connectivity
-
Integrated HPE Smart Array S100i SR Gen10 SATA RAID controller for reliable storage management
Technical Specifications:
-
Brand: HPE (Hewlett Packard Enterprise)
-
Spare Part Number (SPS): P07884-001
-
Assembly Part Number (PCA): P06922-001 / P05165-001
-
Form Factor: Proprietary 1U Rack System Board
-
Processor Socket: Single LGA1151 (Socket H4)
-
Supported Processors: Intel Xeon E-2100 / E-2200 Series, Intel Core i3-8000/9000 Series, Intel Pentium Gold Processors
-
Chipset: Intel C246 Chipset
-
Memory Slots: 4 x DDR4 DIMM Slots
-
Supported Memory Type: DDR4 Unbuffered ECC (UDIMM) up to 2666 MT/s
-
Maximum Memory Capacity: Up to 64 GB
-
Storage Controller: HPE Smart Array S100i SR Gen10 Software RAID (SATA 6Gb/s)
-
Network Controller: HPE Embedded 332i Ethernet Adapter (2 x 1Gb Ports)
-
Systems Management: HPE iLO 5 ASIC Integrated
-
Expansion Slots: Supports PCIe 3.0 via Riser Assembly
-
Compatible Server Chassis: HPE ProLiant DL20 Gen10 Server & HPE ProLiant ML30 Gen10 Server
