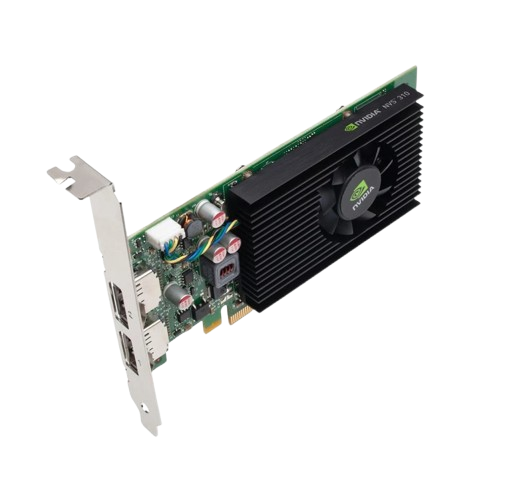

The HP NVIDIA NVS 310 1GB DDR3 Graphics Card (HP Part Numbers: 818243-001 / 818869-001) is an entry-level, energy-efficient commercial graphics card designed explicitly for dual-display business environments, corporate office setups, and financial trading workstations. Built on NVIDIA's Fermi GPU architecture, it features 48 CUDA cores and 1GB of DDR3 memory running over a 64-bit bus, offering steady performance for 2D graphics rendering, video playback, and general enterprise multitasking.
Designed to fit low-profile and small form factor (SFF) chassis, the NVS 310 comes equipped with two native DisplayPort 1.2 outputs. It natively drives up to two independent digital monitors simultaneously at crisp resolutions up to 2560 x 1600 @ 60Hz. Operating over a PCI Express 2.0 x16 host interface, this card consumes under 20W of maximum power, eliminating the need for supplementary power cables while maintaining quiet operation via an active single-slot cooling fan and heatsink.
Procured directly through DataDive, your trusted IT Hardware Supplier in Qatar, this genuine HP NVIDIA NVS 310 graphics card provides a reliable, cost-effective expansion solution for multi-monitor desktop workstations, corporate PC fleets, and digital signage applications.
Key Features:
-
Low-profile, single-slot build designed for small form factor (SFF) and slim corporate desktop PCs
-
1 GB DDR3 dedicated frame buffer memory for fluid multi-window desktop productivity
-
Native dual-monitor support driving up to two 2560 x 1600 displays via 2 x DisplayPort 1.2 ports
-
Low 19.5W maximum power draw operating completely off slot-supplied motherboard power
-
Quiet active cooling assembly featuring a low-noise single fan and integrated heatsink
-
Enterprise API compatibility including support for DirectX 11, OpenGL 4.5, Shader Model 5.0, and CUDA
Technical Specifications:
-
Brand: HP / NVIDIA
-
GPU Series: NVIDIA NVS Series
-
GPU Model: NVIDIA NVS 310
-
HP Part Numbers (MPN): 818243-001 / 818869-001
-
GPU Architecture: NVIDIA Fermi
-
CUDA Cores: 48
-
GPU Core Clock: 523 MHz
-
Shader Clock: 1046 MHz
-
VRAM Capacity: 1 GB
-
VRAM Type: DDR3 / GDDR3 SDRAM
-
Memory Clock Speed: 875 MHz
-
Memory Interface: 64-bit
-
Memory Bandwidth: 14 GB/s
-
Host Interface: PCI Express 2.0 x16
-
Display Output Interfaces: 2 x DisplayPort 1.2
-
Max Simultaneous Displays: 2 Independent Displays (Up to 2560 x 1600 @ 60Hz)
-
APIs Supported: DirectX 11, OpenGL 4.5, Shader Model 5.0, CUDA
-
Power Consumption (TDP): ~19.5 W (No external power cable required)
-
Cooling Solution: Active Single-Slot Fan with Heatsink
-
Form Factor: Low Profile / SFF Compatible (Full-height bracket option available)
-
Application / Compatibility: HP Z-Series Workstations (e.g., Z640), Business PCs, Dual-Monitor Workstations, and Office Displays
