Fujitsu Server Hard Disk FUJITSU MBA3073NP 73GB 68-pin

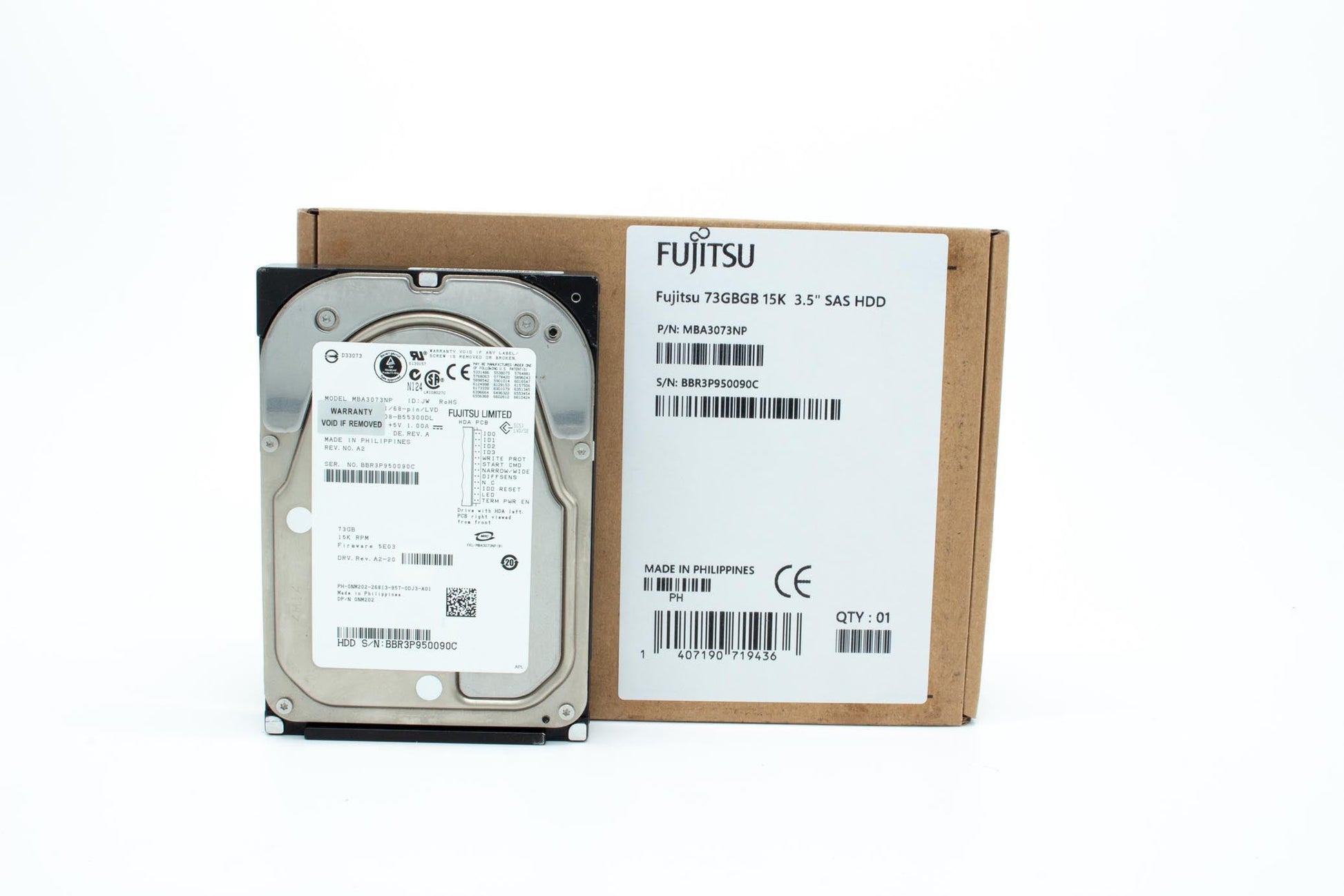

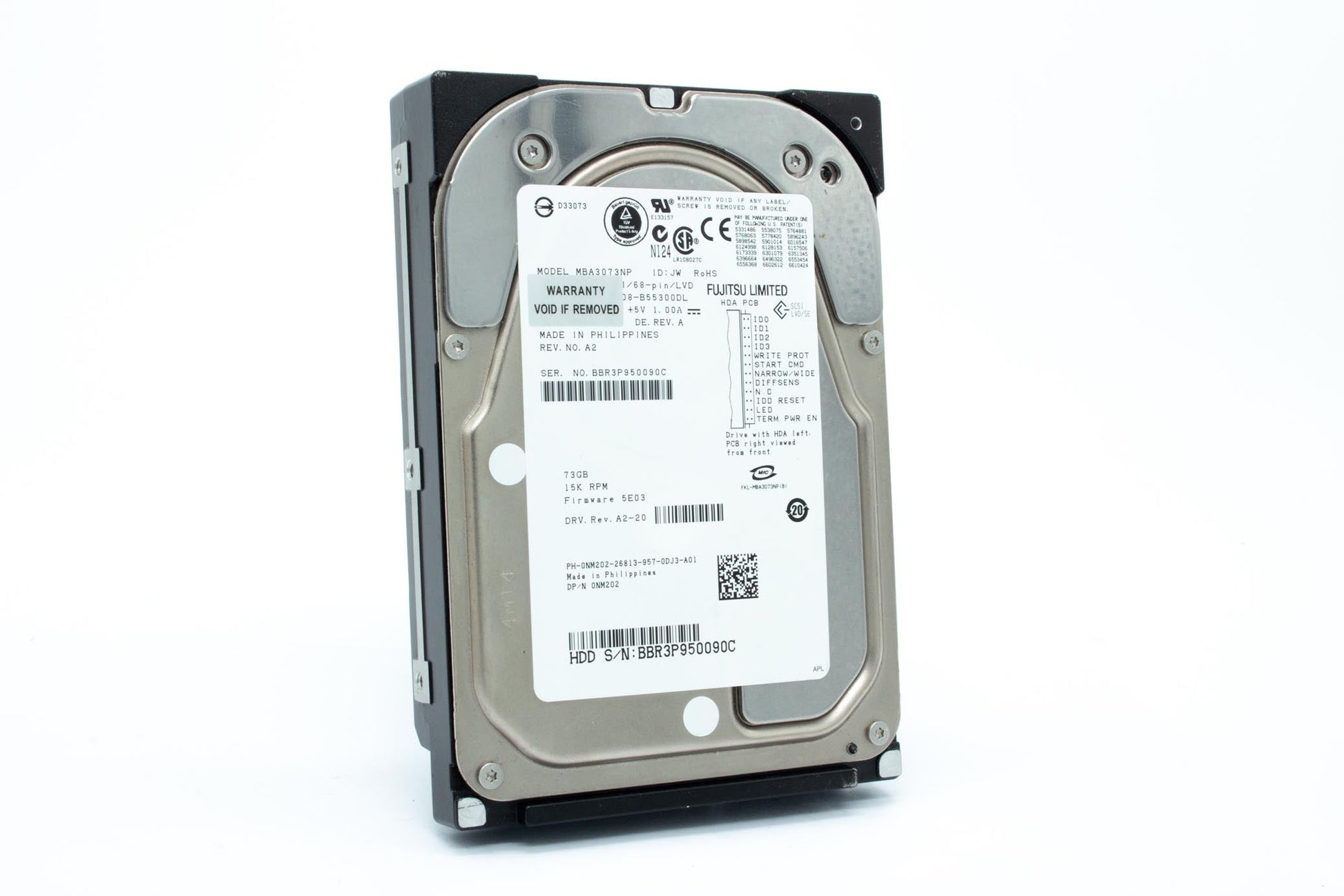

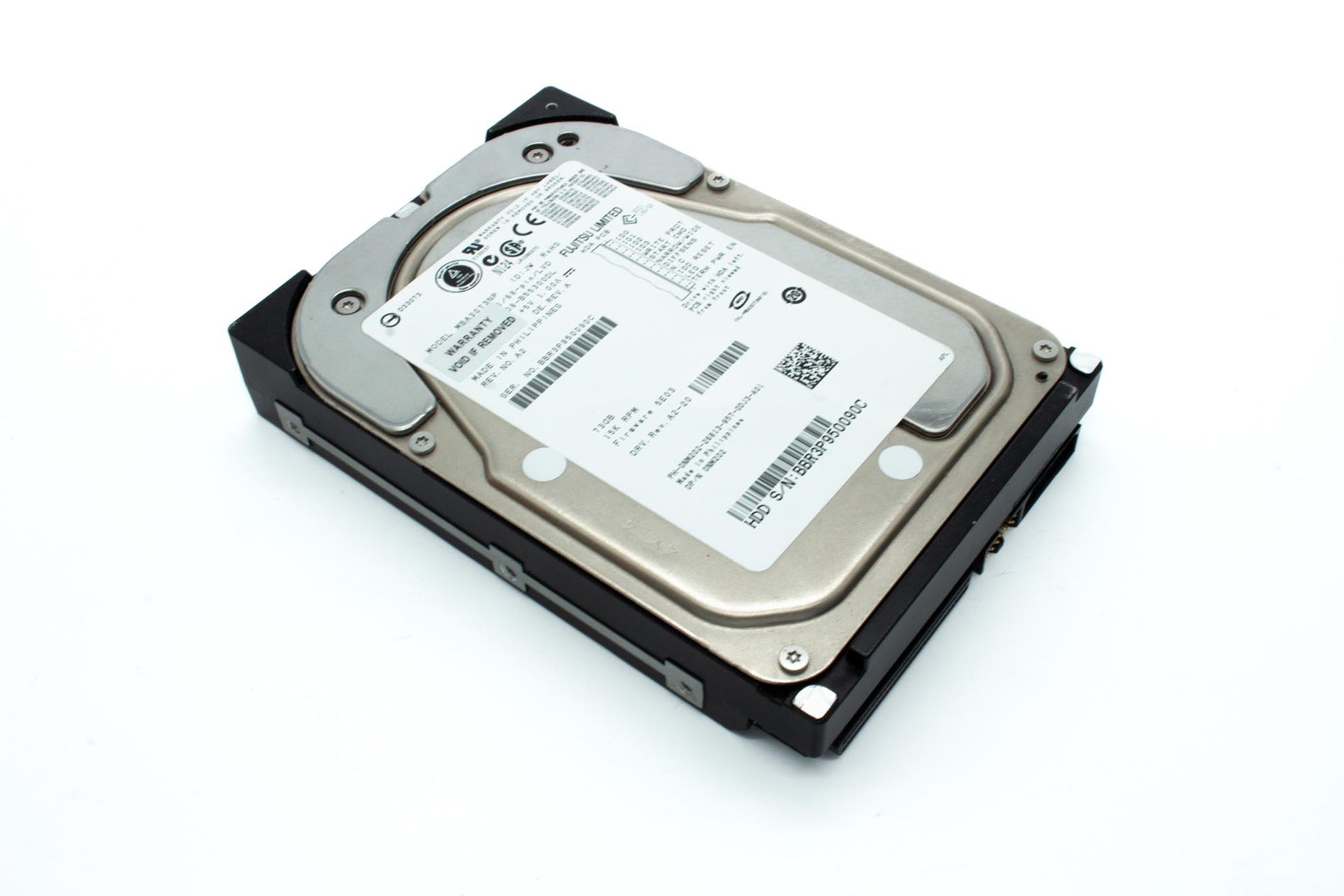

Maximize the reliability and performance of your legacy server infrastructure with the Fujitsu MBA3073NP 73GB Ultra320 SCSI Hard Drive. Designed specifically for high-demand enterprise environments, this 3.5-inch internal drive delivers ultra-fast access times and consistent throughput for critical enterprise applications, rack and tower servers, RAID arrays, and legacy storage systems.

Engineered with a blazing 15,000 RPM spindle speed and a 320 MB/s transfer rate via the Ultra320 SCSI 68-pin (HD68) interface, the MBA3073NP minimizes data latency and accelerates database operations. With built-in features such as Data Packet Protocol and Signal Pre-Compensation, this Fujitsu Enterprise drive provides the operational stability, speed, and endurance required to keep legacy IT systems running smoothly without costly downtime.

Key Features

• 15K RPM High Performance: Fast 15,000 RPM rotational speed delivers low latency (2.0 ms) and quick read/write seek times for demanding workloads.

• Ultra320 SCSI Interface: Features a 68-pin HD68 LVD SCSI interface capable of burst transfer speeds up to 320 MB/s.

• Enterprise Reliability: Designed for mission-critical operations with an MTBF (Mean Time Between Failures) rating of 1.4 million hours.

• Enhanced Buffer: Equipped with a 16MB multi-segmented data buffer for optimized caching and efficient data retrieval.

• 3.5-inch Form Factor: Standard 1-inch high, 3.5-inch Large Form Factor (LFF) profile for seamless compatibility with enterprise server bays and enclosures.

Technical Specification

Brand:   Fujitsu
Model Number:   MBA3073NP
Capacity:  73.5 GB
Form Factor:  3.5-inch x 1.0-inch (LFF)
Interface Type:  Ultra320 SCSI (LVD, 16-bit)
Connector Type:  68-Pin HD68 (Non-Hot Plug /Standard SCSI)
Spindle Speed: 15,000 RPM
Interface Transfer Rate: 320 MB/s (to host)
Internal Data Rate: Up to 147 MB/s
Cache / Buffer Size: 16 MB
Average Seek Time: Read: 3.4 ms / Write: 3.9 ms
Average Latency: 2.0 ms
Mean Time Between Failures (MTBF): 1,400,000 hours
Operating Voltage: 5V ± 5%, 12V ± 5%
Power Consumption (Idle): 9.5 W
