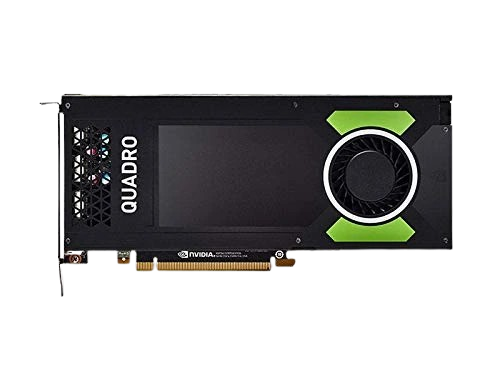

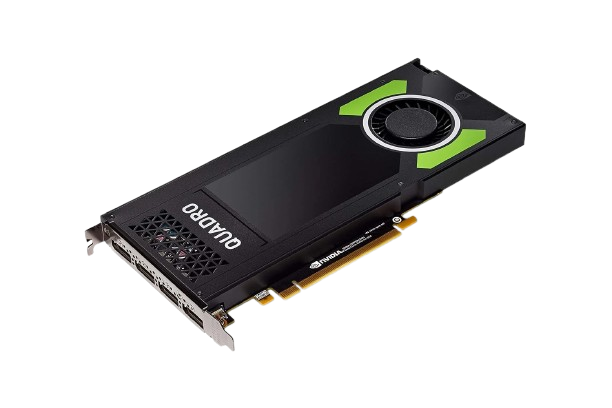

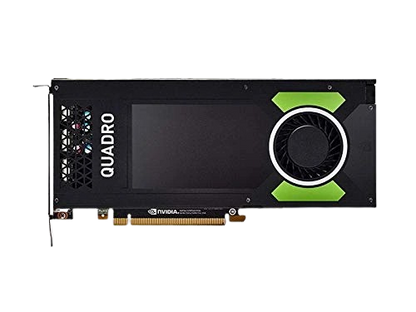

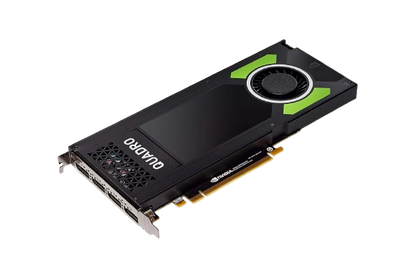

The NVIDIA Quadro P4000 8GB GDDR5 Workstation Graphics Card is a high-performance, single-slot professional visualization solution built on NVIDIA's Pascal GPU architecture. Featuring 1,792 CUDA cores combined with 8GB of GDDR5 memory over a 256-bit bus, this GPU delivers up to 243 GB/s memory bandwidth. Designed specifically for demanding engineering, architectural, and visual content creation tasks, the Quadro P4000 provides ISV-certified application drivers to guarantee ultimate stability across software packages like AutoCAD, SolidWorks, Adobe Premiere Pro, and After Effects.
Engineered with extreme efficiency, the Quadro P4000 packages high rendering capability into a sleek, single-slot form factor with a low 105W maximum power draw. Equipped with four DisplayPort 1.4a outputs, it can drive up to four 5K (5120x2880 @ 60Hz) or multiple 4K display configurations simultaneously. While optimized for professional workflows and real-time 3D simulation rather than pure gaming, its raw Pascal compute performance provides reliable versatility across graphics-intensive tasks.
Available from DataDive, your trusted enterprise hardware supplier in Qatar, this original NVIDIA Quadro P4000 graphics adapter is ideal for professional design workstations, CAD stations, media production suites, and VR environments.
Key Features:
-
Advanced NVIDIA Pascal GPU architecture with 1,792 CUDA cores for fast rendering and design work
-
8 GB GDDR5 video memory on a 256-bit bus interface delivering up to 243 GB/s bandwidth
-
Drives up to four simultaneous 5K (5120x2880 @ 60Hz) displays via 4 x DisplayPort 1.4a outputs
-
ISV-certified for application stability on industry-standard CAD, CAE, and 3D software suites
-
Space-saving single-slot, full-height form factor designed for workstation chassis flexibility
-
Low 105W TDP energy consumption powered via a single 6-pin PCI Express power connector
Technical Specifications:
-
Brand: NVIDIA
-
GPU Series: NVIDIA Quadro Series
-
GPU Model: NVIDIA Quadro P4000
-
Manufacturer Part Number (MPN): 699-5G410-0501-230 / 942638-001 (HP)
-
GPU Architecture: NVIDIA Pascal
-
CUDA Cores: 1,792
-
VRAM Capacity: 8 GB
-
VRAM Type: GDDR5
-
Memory Interface: 256-bit
-
Memory Bandwidth: Up to 243 GB/s
-
Display Connectors: 4 x DisplayPort 1.4a
-
Max Simultaneous Displays: 4 Displays (Up to 5K resolution @ 60Hz per display)
-
Host Interface: PCI Express 3.0 x16
-
Power Consumption (TDP): 105 W
-
Power Connector Required: 1 x 6-pin PCIe
-
Form Factor: Single-Slot, Full-Height
-
System / Software Compatibility: Windows 10, Windows 11, Linux, ISV Certified for AutoCAD, SolidWorks, Adobe CC
