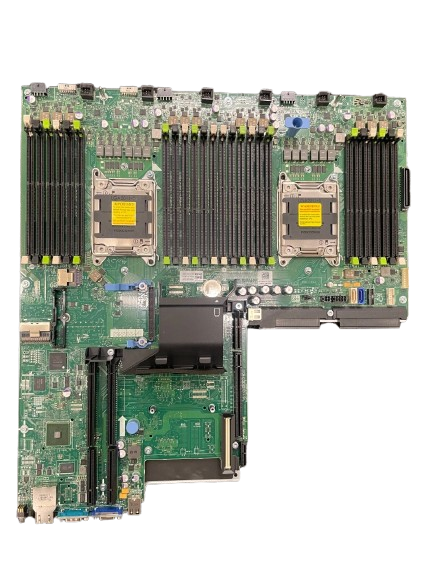

The Dell PowerEdge R720 System Board Motherboard (C4Y3R / 0C4Y3R) is an OEM replacement server mainboard engineered to deliver robust computing power, low latency, and high scalability for Dell 12th Generation 2U rack servers. Equipped with dual LGA2011 CPU sockets and powered by the Intel C602 chipset, this system board supports up to two Intel Xeon E5-2600 or E5-2600 v2 series processors, making it an ideal core component for virtualized enterprise environments, database management, and high-density data workloads.
Designed with exceptional memory expandability, the mainboard houses 24 DDR3 DIMM slots capable of supporting up to 768GB of Registered (RDIMM), Load-Reduced (LRDIMM), or Unbuffered (UDIMM) ECC memory at speeds up to 1866MHz. It incorporates integrated PCIe 3.0 expansion slots for multi-GPU or high-speed add-in cards, a dedicated Network Daughter Card (NDC) bay for custom quad-port LOM connectivity, and an internal slot for PERC RAID storage controllers.
Available from DataDive, your trusted Technology Hardware Supplier in Qatar, this genuine Dell PowerEdge R720 motherboard is available in our Server components collection, ideal for enterprise server repairs, infrastructure upgrades, data center node maintenance, and custom rack hardware deployments.
Key Features:
-
Dual LGA2011 sockets support two Intel Xeon E5-2600 / E5-2600 v2 family processors
-
24 DDR3 memory slots support up to 768GB of ECC RDIMM/LRDIMM/UDIMM system memory
-
Built-in Intel C602 chipset provides enterprise-grade I/O routing and data stability
-
Integrated iDRAC7 with Lifecycle Controller for seamless remote agent-free server management
-
High-speed PCIe 3.0 expansion slots support dedicated RAID controllers, network daughter cards, and GPUs
Technical Specifications:
-
Brand: Dell
-
Part Number / SKU: C4Y3R / 0C4Y3R
-
Alternate Part Numbers: VWT90, JP31P, X3D66, 0X3D66, 0JP31P, XH7F2
-
Compatible Server Chassis: Dell PowerEdge R720 & R720xd (2U Rack Servers)
-
Processor Sockets: 2 x LGA2011 (Socket R)
-
Supported Processors: Intel Xeon E5-2600 and E5-2600 v2 Series
-
Chipset: Intel C602 Chipset
-
Memory Slots: 24 x DDR3 DIMM Slots
-
Maximum Memory Capacity: Up to 768GB DDR3 ECC Memory
-
Memory Types Supported: DDR3 RDIMM, LRDIMM, UDIMM (Up to 1866 MT/s)
-
Expansion Slots: Up to 7 x PCIe 3.0 Slots (Via Riser Cards)
-
Storage Controller Support: Dedicated Internal PERC Slot (PERC H310 / H710 / H710P)
-
Network Connectivity: Network Daughter Card (NDC) Slot (Broadcom / Intel 1GbE / 10GbE options)
-
Systems Management: iDRAC7 Express / Enterprise integrated
