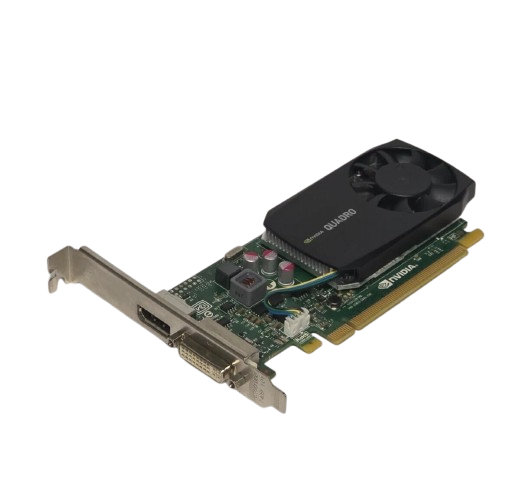

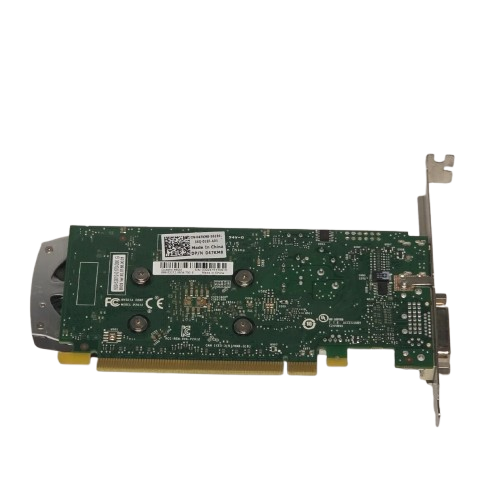

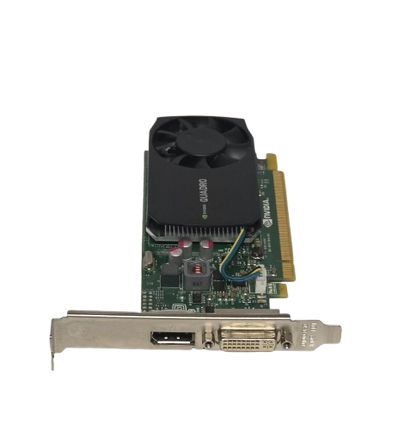

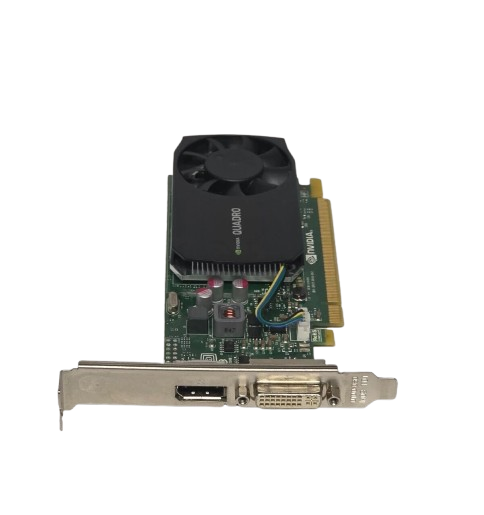

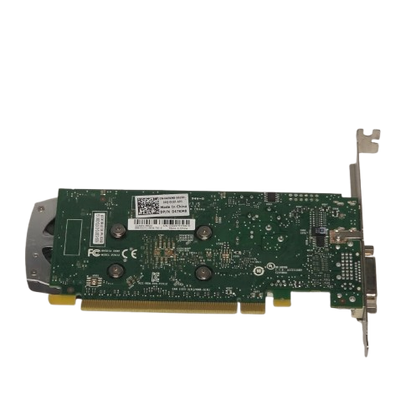

The Dell NVIDIA Quadro K620 2GB DDR3 Workstation Graphics Card (Dell Part Numbers: 0379T0 / 047KM8) is a reliable professional graphics adapter powered by NVIDIA's Maxwell GPU architecture. Equipped with 384 CUDA cores and 2GB of dedicated DDR3 video memory across a 128-bit bus, this card delivers smooth 3D application performance and accelerated rendering for entry-level CAD drafting, architectural modeling, and digital media applications.
Designed for seamless deployment in corporate desktops and Dell Precision workstations, the Quadro K620 natively supports dual-monitor setups via one DisplayPort 1.2 and one Dual-Link DVI-D output. It supports crisp multi-display resolution configurations with certified software stability across industry-standard engineering applications like AutoCAD and SolidWorks. Operating over a PCI Express interface, the card features an energy-efficient 45W maximum power draw that runs entirely off slot-supplied motherboard power without requiring external power cables.
Available from DataDive, your trusted Technology Hardware Supplier in Qatar, this original Dell NVIDIA Quadro K620 graphics card is featured in our GPU / Accelerator collections, providing an essential upgrade or exact replacement solution for entry-level 3D CAD stations, multi-display office terminals, and enterprise desktop fleets.
Key Features:
-
NVIDIA Maxwell GPU architecture with 384 CUDA cores engineered for entry-level 3D design tasks
-
2 GB DDR3 frame buffer memory for fluid manipulation of assemblies and multi-app workflows
-
Dual-display capability driving up to two independent monitors via 1 x DisplayPort 1.2 and 1 x DVI-D port
-
Slot-powered 45W low power consumption running directly off the PCIe bus without external power cords
-
Active cooling assembly featuring an integrated heatsink and quiet axial fan for reliable thermal stability
-
ISV certified application acceleration for major professional 2D/3D software suites including OpenGL and DirectX
Technical Specifications:
-
Brand: Dell / NVIDIA
-
GPU Series: NVIDIA Quadro Series
-
GPU Model: NVIDIA Quadro K620
-
Dell Part Numbers (DPN): 0379T0, 047KM8, 379T0, 47KM8
-
GPU Architecture: NVIDIA Maxwell
-
CUDA Cores: 384
-
VRAM Capacity: 2 GB
-
VRAM Type: DDR3 SDRAM
-
Memory Interface Width: 128-bit
-
Host Interface: PCI Express 2.0 / 3.0 x16
-
Display Output Ports: 1 x DisplayPort 1.2, 1 x Dual-Link DVI-D
-
Max Simultaneous Displays: 2 Independent Displays
-
Power Consumption (TDP): ~45 Watts (No auxiliary power cable required)
-
Cooling Solution: Active Single-Slot Fan with Heatsink
-
Form Factor: Full Height / Standard Profile (Low Profile bracket variants available)
-
Application / Compatibility: Dell Precision Workstations, Dell OptiPlex Desktops, 2D/3D CAD Workstations, and Multi-Monitor Corporate Offices
