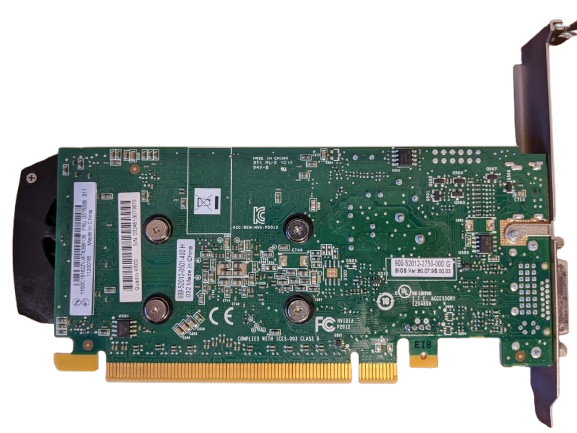

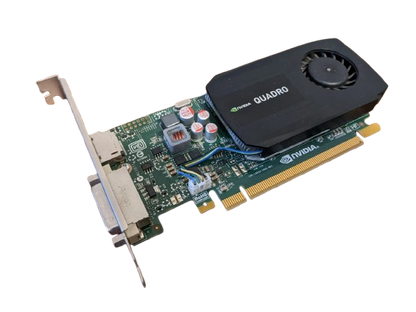

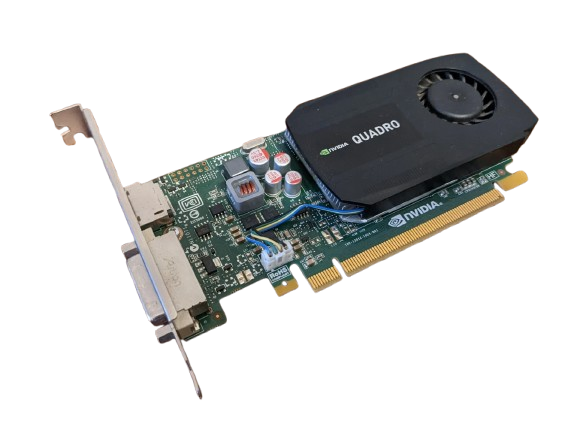

The Dell NVIDIA Quadro K600 1GB DDR3 Workstation Graphics Card (Dell Part Number: V5WK5 / 0V5WK5) is an entry-level professional 3D graphics adapter built on NVIDIA's Kepler GPU architecture. Featuring 192 CUDA cores and 1GB of dedicated DDR3 memory over a 128-bit bus, it delivers 29.0 GB/s of bandwidth to ensure stable performance for entry-level 3D CAD modeling, 2D drafting, and everyday corporate graphics acceleration.
Specifically engineered for seamless deployment across standard desktop towers and small form factor (SFF) workstations, the Quadro K600 natively supports dual-monitor setups via one DisplayPort 1.2 port and one Dual-Link DVI-I output. It drives digital resolutions up to 3840 x 2160 @ 60Hz over DisplayPort, giving engineers and designers the visual clarity needed for complex drawings. Operating over a PCI Express interface, the card maintains a power-efficient 41W maximum TDP that runs entirely on slot power without supplementary cables.
Available from DataDive, your trusted IT Hardware Supplier in Qatar, this original Dell NVIDIA Quadro K600 graphics card is featured in our GPU / Accelerator collections, providing a cost-effective upgrade or reliable replacement part for entry-level engineering workstations, business desktop fleets, and dual-monitor office stations.
Key Features:
-
NVIDIA Kepler GPU architecture with 192 CUDA cores engineered for entry-level 3D design tasks
-
1 GB DDR3 video memory with 29.0 GB/s bandwidth for smooth CAD and application navigation
-
Dual-display connectivity featuring 1 x DisplayPort 1.2 and 1 x Dual-Link DVI-I port
-
Low-profile, single-slot form factor compatible with small form factor (SFF) and standard chassis
-
Slot-powered 41W energy efficiency operating directly off the PCIe slot without external power cords
-
Active cooling assembly with an ultra-quiet fansink for low-noise thermal management
Technical Specifications:
-
Brand: Dell / NVIDIA
-
GPU Series: NVIDIA Quadro Series
-
GPU Model: NVIDIA Quadro K600 (GK107)
-
Dell Part Numbers (DPN): V5WK5 / 0V5WK5
-
GPU Architecture: NVIDIA Kepler
-
CUDA Cores: 192
-
GPU Core Clock: 876 MHz
-
VRAM Capacity: 1 GB
-
VRAM Type: DDR3 SDRAM
-
Memory Interface Width: 128-bit
-
Memory Bandwidth: 29.0 GB/s
-
Host Interface: PCI Express 2.0 / 3.0 x16
-
Display Output Ports: 1 x DisplayPort 1.2, 1 x Dual-Link DVI-I
-
Max Simultaneous Displays: 2 Independent Monitors
-
Max Display Resolution: 3840 x 2160 @ 60Hz (DisplayPort) / 2560 x 1600 @ 60Hz (DVI)
-
APIs Supported: DirectX 11, OpenGL 4.4, Shader Model 5.0, CUDA, DirectCompute, OpenCL
-
Power Consumption (TDP): 41 Watts (No auxiliary power cable required)
-
Cooling Solution: Active Single-Slot Fansink
-
Form Factor: Low Profile / Single-Slot
-
Application / Compatibility: Dell OptiPlex Desktop PCs, Precision Workstations, AutoCAD / SolidWorks Drafting Stations, and Dual-Display Corporate Offices
