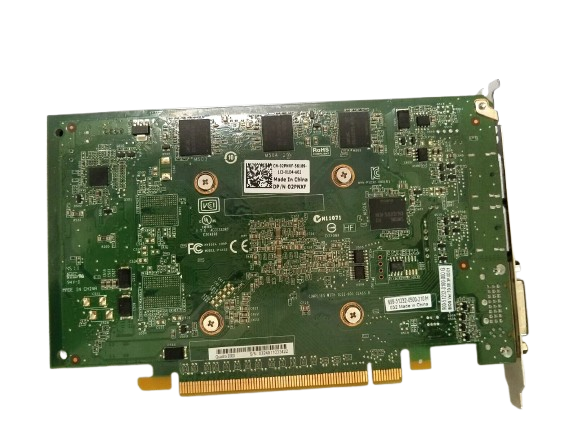

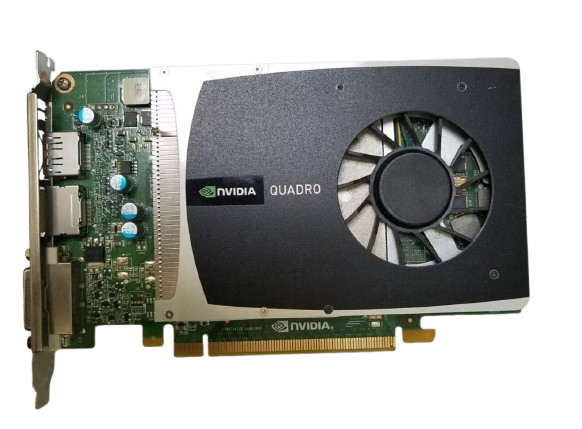

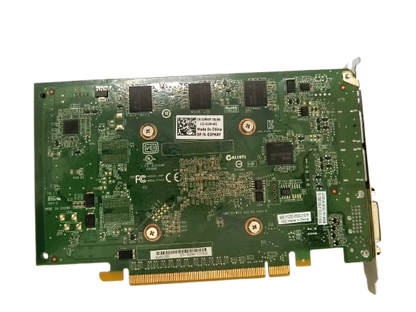

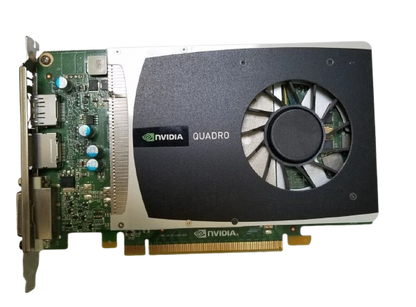

The Dell NVIDIA Quadro 2000 1GB GDDR5 Workstation Graphics Card (Dell Part Number: 02PNXF / 2PNXF) is a mid-range professional 3D graphics solution engineered for CAD design, 3D animation, and scientific data visualization. Built on NVIDIA's Fermi GPU architecture, it features 192 CUDA cores paired with 1GB of dedicated GDDR5 memory over a 128-bit bus, delivering up to 41.6 GB/s of bandwidth for smooth rendering of complex mechanical assemblies and digital models.

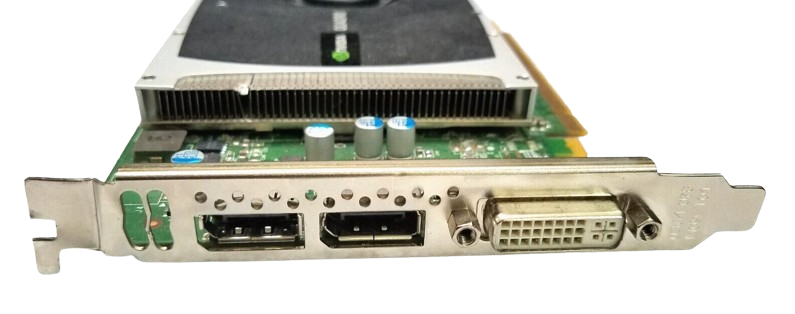

Engineered specifically for enterprise workstations like the Dell Precision series, the Quadro 2000 provides flexible multi-monitor connectivity via two DisplayPort outputs and one Dual-Link DVI-I port. It natively supports dual independent displays at crisp digital resolutions up to 2560 x 1600 @ 60Hz. Operating via a PCI Express 2.0 x16 host interface, the card maintains an efficient 62W maximum TDP, running entirely on slot-supplied motherboard power without requiring external 6-pin power cables.
Available from DataDive, your trusted Workstation Hardware Supplier in Qatar, this genuine Dell NVIDIA Quadro 2000 graphics adapter is featured in our GPU / Accelerator collections, offering an ideal replacement part or cost-effective upgrade for engineering workstations, 3D modeling desks, and legacy CAD design environments.
Key Features:
-
NVIDIA Fermi GPU architecture with 192 CUDA parallel processing cores for reliable 3D CAD performance
-
1 GB GDDR5 frame buffer memory with 41.6 GB/s bandwidth for smooth assembly navigation
-
Multi-display connectivity supporting up to two simultaneous monitors via DisplayPort and DVI-I outputs
-
Slot-powered 62W low energy consumption running directly off the PCIe bus without extra cables
-
Active single-slot cooling fan and heatsink assembly for low-noise, reliable thermal management
-
Brand: Dell / NVIDIA
-
GPU Series: NVIDIA Quadro Series
-
GPU Model: NVIDIA Quadro 2000
-
Dell Part Number (DPN): 02PNXF / 2PNXF
-
GPU Architecture: NVIDIA Fermi
-
CUDA Cores: 192
-
VRAM Capacity: 1 GB
-
VRAM Type: GDDR5
-
Memory Interface Width: 128-bit
-
Memory Bandwidth: 41.6 GB/s
-
Host Interface: PCI Express 2.0 x16
-
Display Output Ports: 2 x DisplayPort, 1 x Dual-Link DVI-I
-
Max Simultaneous Displays: 2 Independent Displays
-
Max Digital Resolution: Up to 2560 x 1600 @ 60Hz
-
APIs Supported: DirectX 11, OpenGL 4.4, Shader Model 5.0, CUDA, DirectCompute, OpenCL
-
Power Consumption (TDP): 62 Watts (No auxiliary power cable required)
-
Cooling Solution: Active Single-Slot Fansink
-
Form Factor: Single-Slot, Standard / Full Height
-
Application / Compatibility: Dell Precision Workstations, 3D CAD/CAM (AutoCAD, SolidWorks), Animation Suites, and Enterprise Desktops
