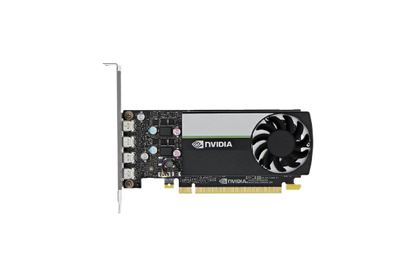

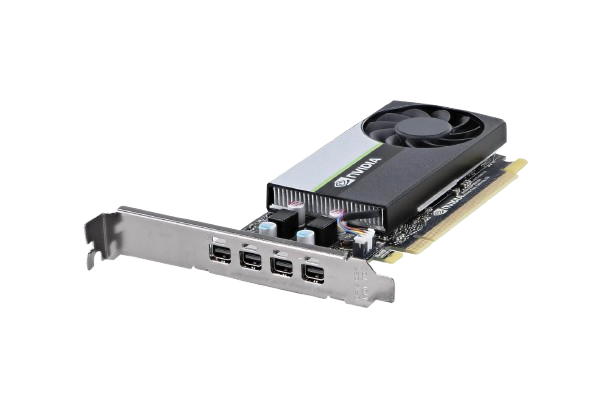

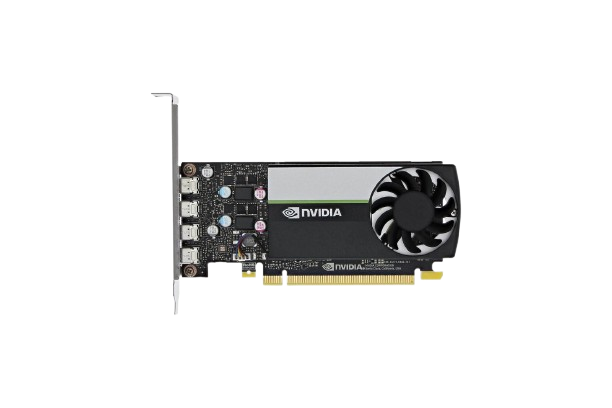

The Dell NVIDIA T1000 8GB GDDR6 Workstation Graphics Card (Dell Part Number: 0D408X / D408X) is a high-efficiency, professional graphics solution built on NVIDIA's Turing GPU architecture. Featuring 896 CUDA cores and an upgraded 8GB frame buffer of fast GDDR6 memory operating across a 128-bit bus, this card delivers up to 160 GB/s of bandwidth. It is specifically designed to accelerate professional 2D/3D CAD design, BIM workflows, multi-layer video editing, and complex visual multitasking.
Engineered for seamless integration into enterprise platforms such as Dell Precision workstations, the NVIDIA T1000 features four native Mini DisplayPort 1.4a outputs. It supports up to four simultaneous 4K screens or high-density 8K displays (7680 x 4320 @ 60Hz) with HDR color reproduction. Operating via a PCI Express 3.0 x16 host interface, the GPU maintains a power-efficient 50W maximum TDP, running entirely on motherboard slot power without requiring supplementary power connectors.
Available from DataDive, your trusted Technology Hardware Supplier in Qatar, this original Dell NVIDIA T1000 graphics card is featured in our GPU / Accelerator collections, delivering a powerful upgrade for 3D modeling stations, architectural editing setups, and multi-monitor financial command centers.
Key Features:
-
NVIDIA Turing GPU architecture with 896 CUDA parallel processing cores
-
Expanded 8 GB GDDR6 video memory offering up to 160 GB/s bandwidth for large 3D datasets
-
Quad-display capability supporting up to four independent 4K or 8K monitors via 4 x Mini DisplayPort 1.4a
-
Compact single-slot form factor ideal for high-density, small-footprint workstations
-
Energy-efficient 50W maximum power consumption operating completely off PCI Express slot power
-
Active single-fan cooling assembly providing reliable thermal performance during sustained rendering workloads
Technical Specifications:
-
Brand: Dell / NVIDIA
-
GPU Architecture: NVIDIA Turing
-
GPU Model: NVIDIA T1000 (Quadro Series)
-
Dell Part Numbers (DPN): 0D408X / D408X
-
CUDA Cores: 896
-
Base Clock: 1065 MHz
-
Boost Clock: 1395 MHz
-
VRAM Capacity: 8 GB
-
VRAM Type: GDDR6
-
Memory Interface Width: 128-bit
-
Memory Bandwidth: Up to 160 GB/s
-
Host Interface: PCI Express 3.0 x16
-
Display Output Ports: 4 x Mini DisplayPort 1.4a
-
Max Simultaneous Displays: Up to 4 Displays
-
Max Resolution Support: 7680 x 4320 pixels (8K Ultra HD @ 60Hz)
-
APIs Supported: DirectX 12.0, OpenGL 4.6, Vulkan 1.2, CUDA, OpenCL
-
Power Consumption (TDP): 50 Watts (No auxiliary power cable required)
-
Cooling Solution: Active Single-Fan Cooler with Heatsink
-
Form Factor: Single-Slot, Low Profile / Full Height Bracket
-
Application / Compatibility: Dell Precision Workstations, 3D CAD/CAM (AutoCAD, SolidWorks), Architectural Design Suites, and Quad-Monitor Command Posts
