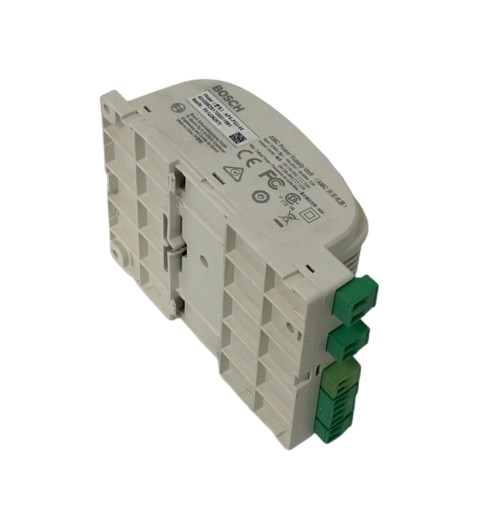

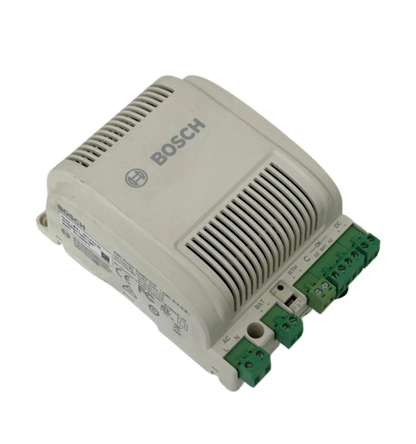

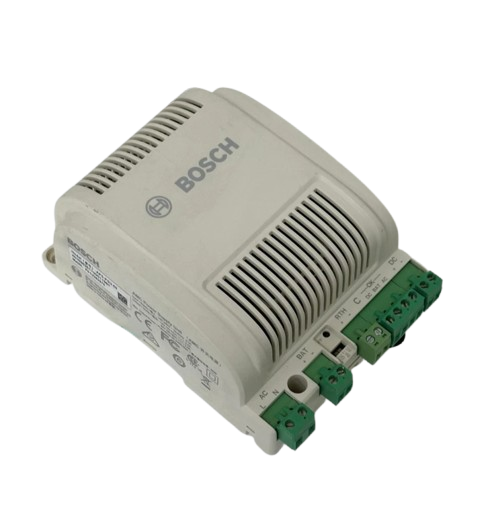

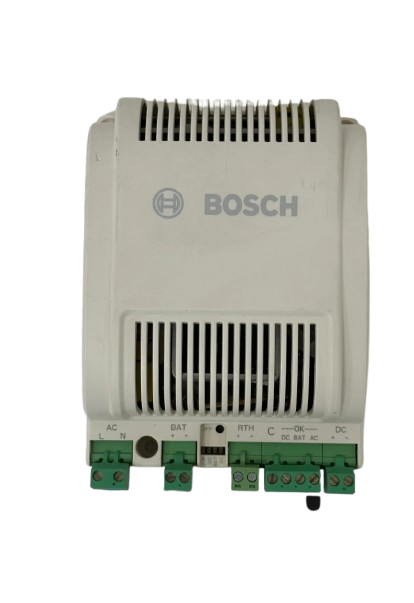

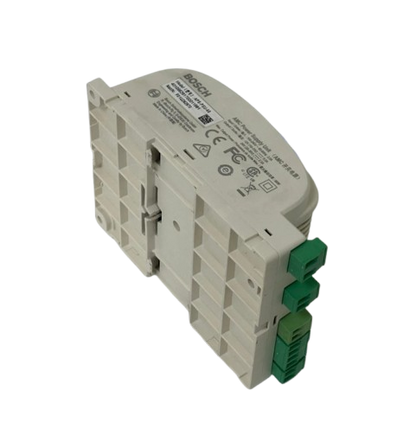

The Bosch APS-PSU-60 Power Supply Unit is an enterprise-grade 60W power supply designed specifically to deliver reliable, uninterruptible DC power to Bosch Access Modular Controllers (AMC) and expansion I/O boards. Engineered for access control systems, it integrates a sophisticated battery charging device that regulates continuous backup power, safeguarding security infrastructure against local power outages and voltage instability.
Featuring selectable DC output configurations, the unit operates at either 12 VDC (5 A output) or 24 VDC (2.5 A output) to easily adapt to diverse controller and peripheral voltage requirements. It features complete protection circuitry, including overvoltage protection, short-circuit safeguarding, thermal overload prevention, and battery deep discharge protection to maintain maximum operational longevity and security uptime.
Available from DataDive, your trusted Technology Hardware Supplier in Qatar, this genuine Bosch AMC power supply unit is available in our Power supply collection, ideal for access control security panels, commercial building automation, surveillance system power management, and industrial security integration across enterprise facilities.
Key Features:
-
Selectable 12 VDC (5 A) or 24 VDC (2.5 A) regulated output for flexible controller deployment
-
Integrated battery charger supports 12 V / 7 Ah, 12 V / 14 Ah, and 24 V / 7 Ah backup batteries
-
Universal AC input range (100–240 VAC, 50/60 Hz) accommodates global power standards
-
Comprehensive circuit protection prevents overvoltage, overload, and deep battery discharge failures
-
Compact DIN-rail or wall-mountable form factor engineered for easy installation inside control enclosures
Technical Specifications:
-
Brand: Bosch Security Systems
-
Part Number / Model: APS-PSU-60
-
Product Type: AMC Power Supply Unit with Battery Charger
-
Power Output Rating: 60 Watts
-
Input Voltage: 100 to 240 VAC, 50/60 Hz
-
Selectable DC Output: 12 VDC @ 5 A or 24 VDC @ 2.5 A
-
Supported Backup Batteries: 12 V / 7 Ah, 12 V / 14 Ah, and 24 V / 7 Ah Lead-Acid / Gel Batteries
-
Protection Features: Overvoltage, Overload, Short-Circuit, and Battery Deep-Discharge Protection
-
Mounting Style: DIN Rail Mountable or Screw Wall Mount
-
Operating Temperature: -20°C to +60°C (-4°F to 140°F)
-
Compatible Equipment: Bosch Access Modular Controllers (AMC) and Access Control System Enclosures
