4TB SAS MSA hard drive - 7,200 RPM, 3.5-inch large form factor (LFF), 12 Gb/s interface, midline (MDL)

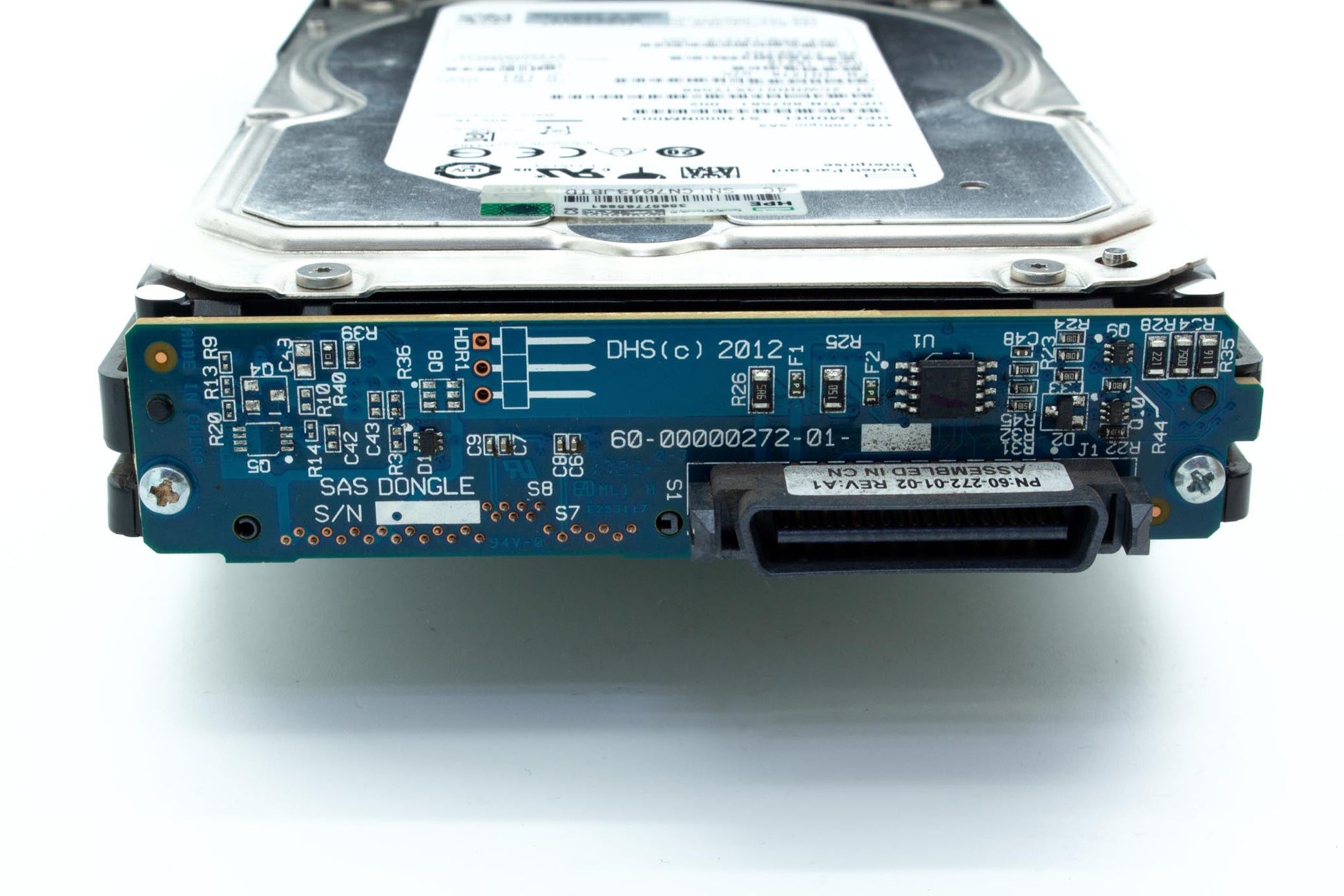

HP MSA2 / MSA2000 controller enclosures and large form factor expansion enclosures accept unique HP SAS disk drive modules with different firmware and different trays than other HP storage arrays and Proliant servers. The disk drives have SAS interposers attached to the back which convert the native dual port SAS interface to an SCA-40 connector. While this SCA-40 connector has the same shape as a Fibre Channel (FC) connector - the drives are NOT utilizing the FC protocol. If you look closely at the interposer - the circuitry is rather simplistic and no bridge / translator chip is attached. The interposer is - more or less - acting as a signal filter and port relocator to connect to the MSA2's proprietary backplane.

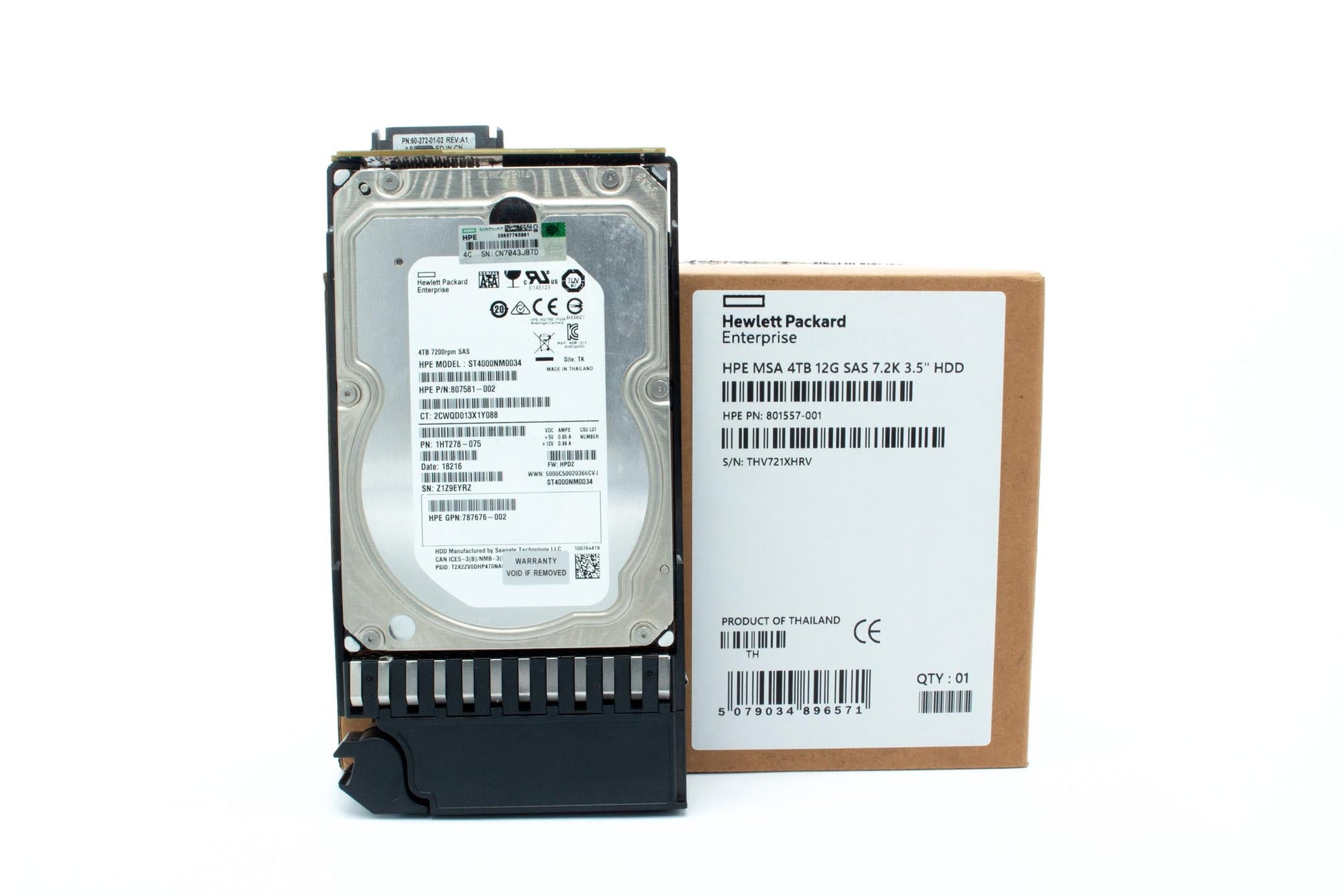

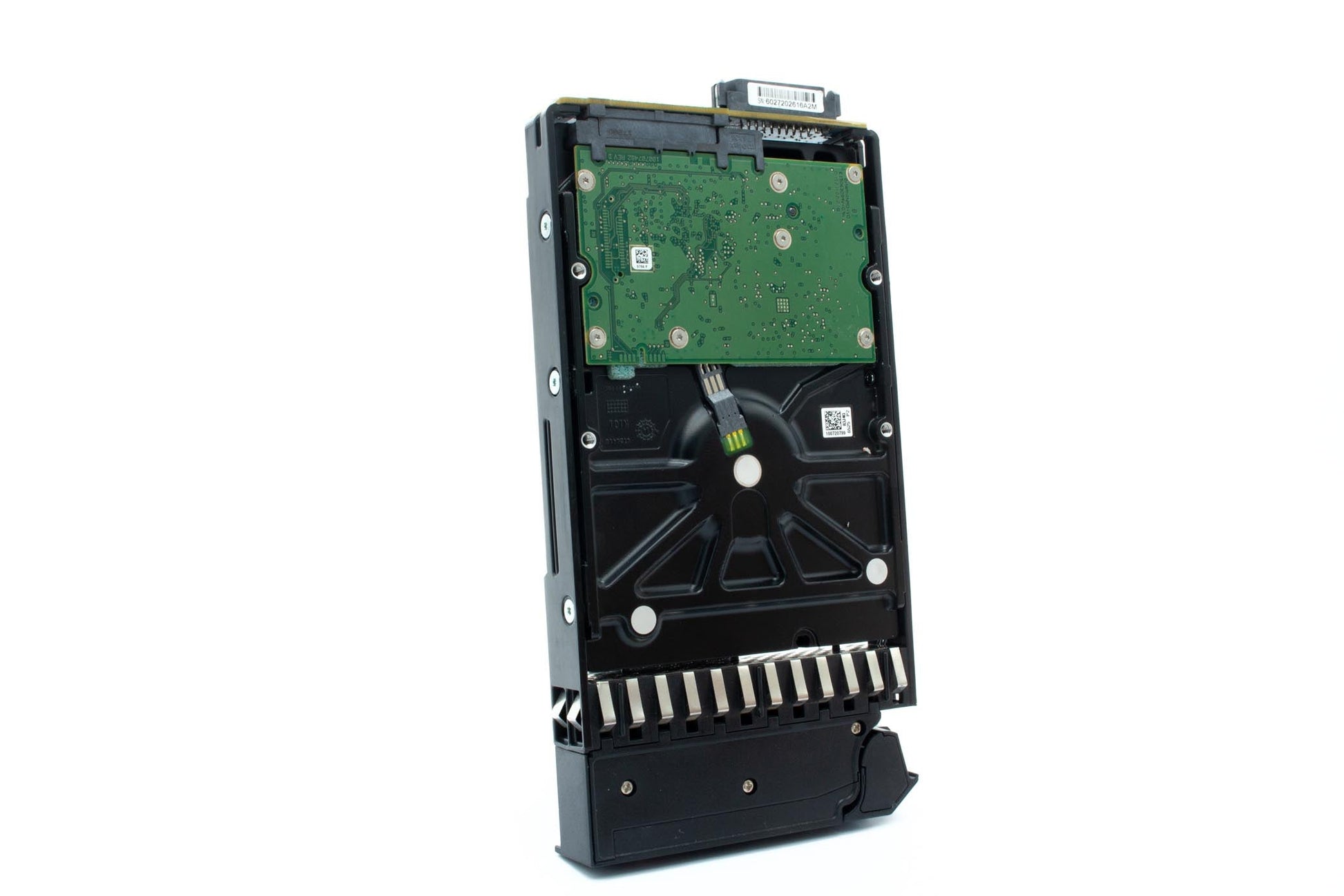

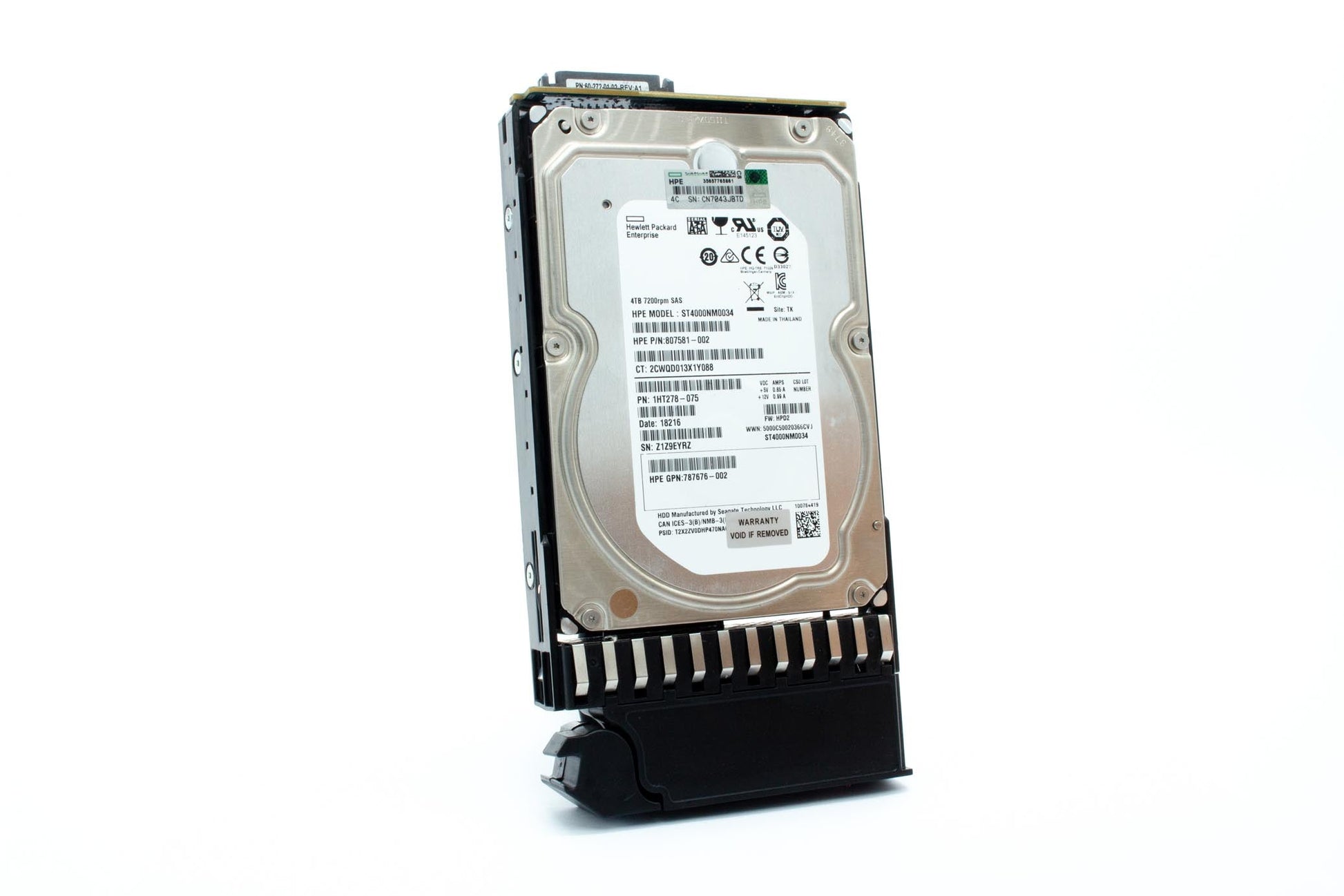

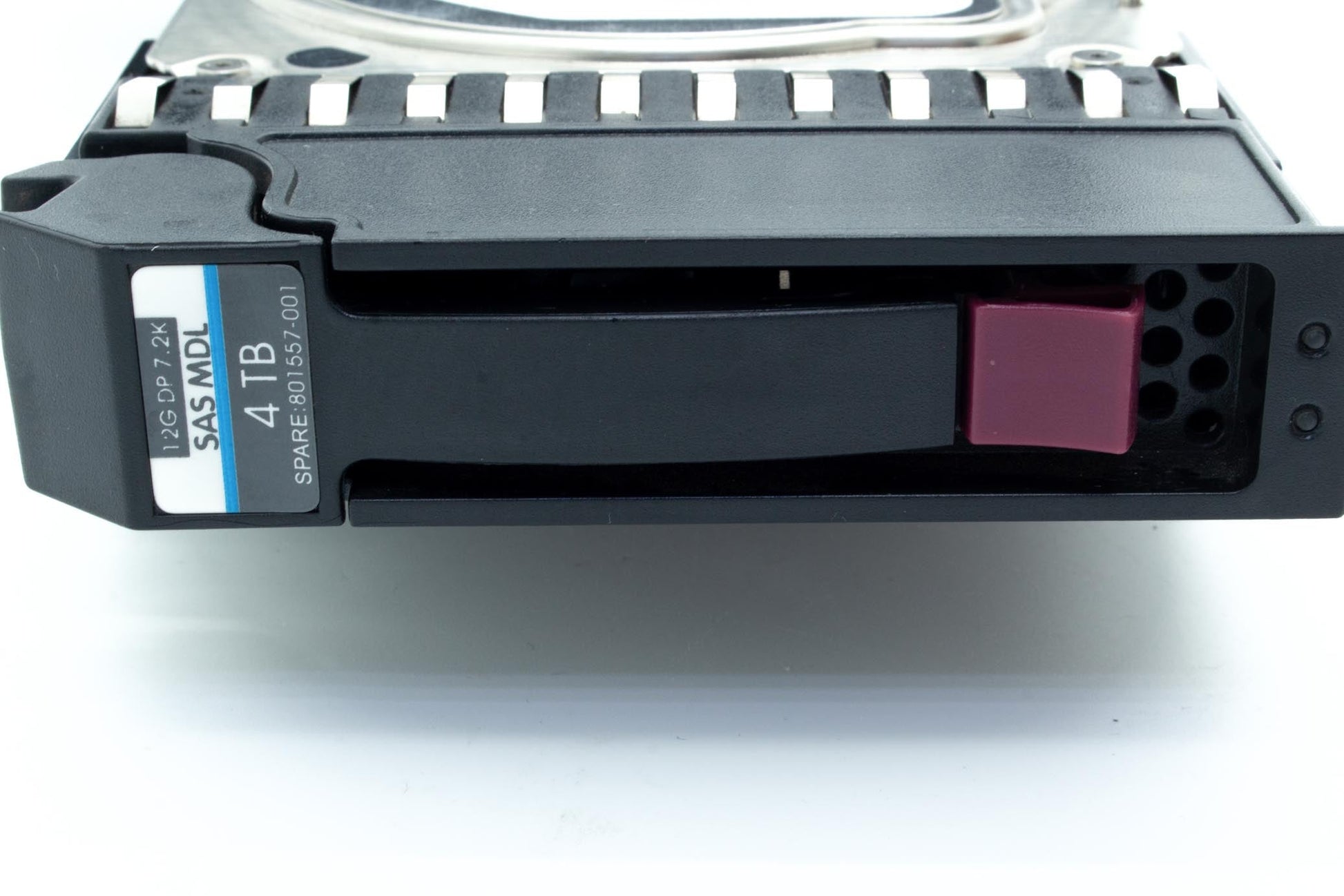

HP MSA/MSA2 4TB 3.5-inch LFF SAS 12Gb/s 7.2K RPM 512e Dual Port (DP) Midline (MDL) Hot-Plug Hard Drive In HP MSA/MSA2 Hard Drive tray w/interposer connector (as pictured) For HP MSA1040 MSA2040 MSA2050 MSA2000 MSA2000i and P2000 SAN Storage Arrays Genuine HP serial number and MSA/MSA2 firmware Genuine HP manufactured Hard Drive
