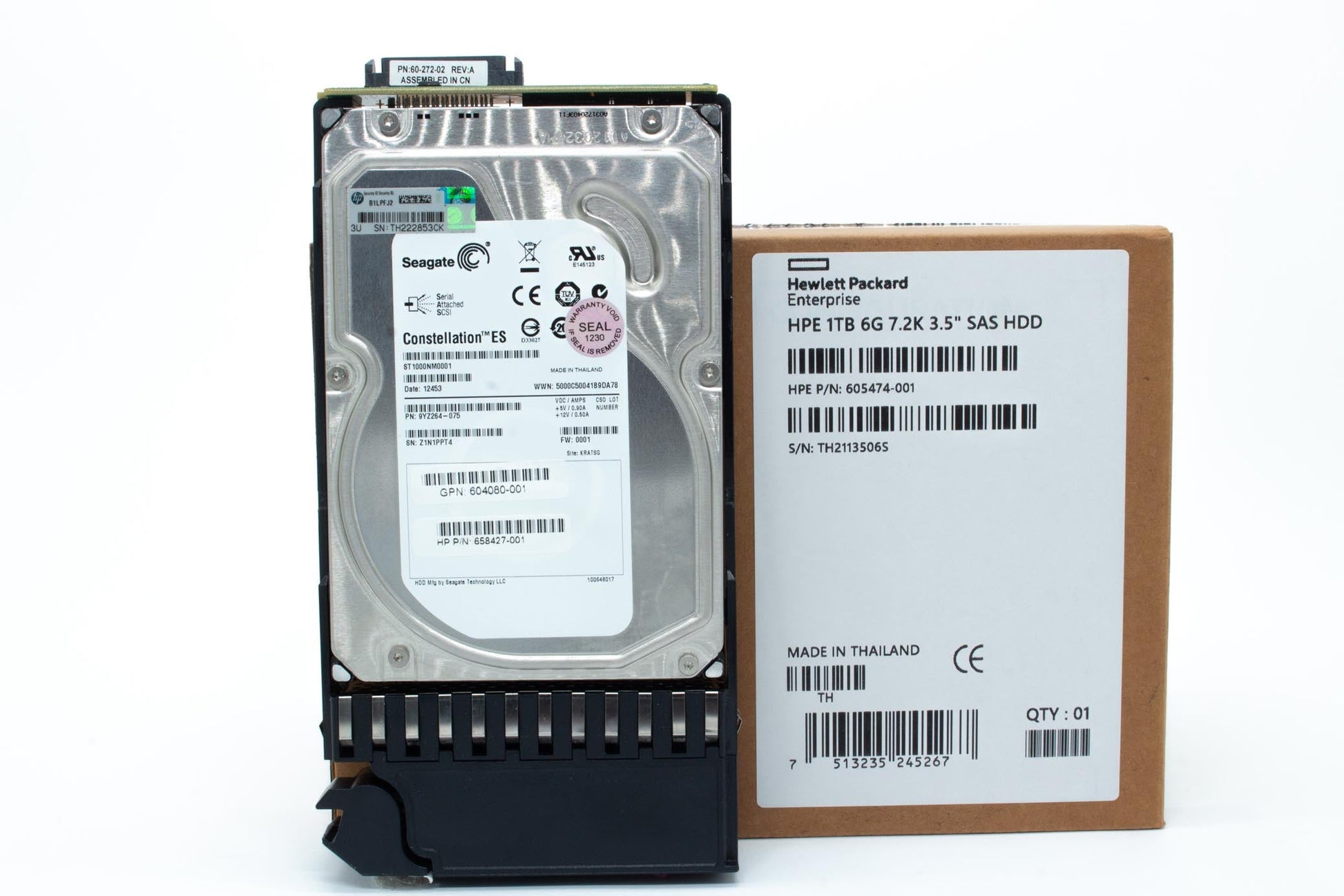

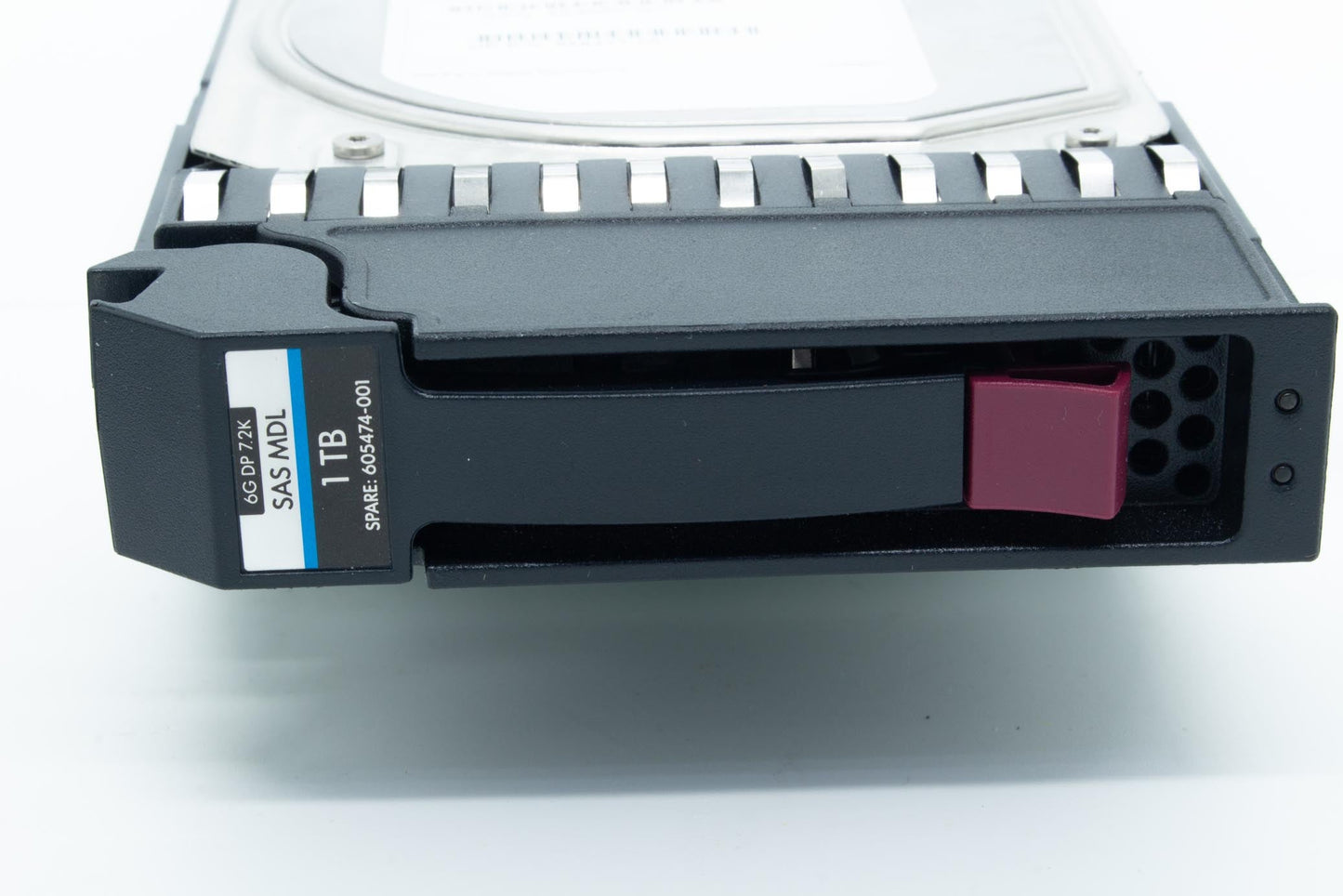

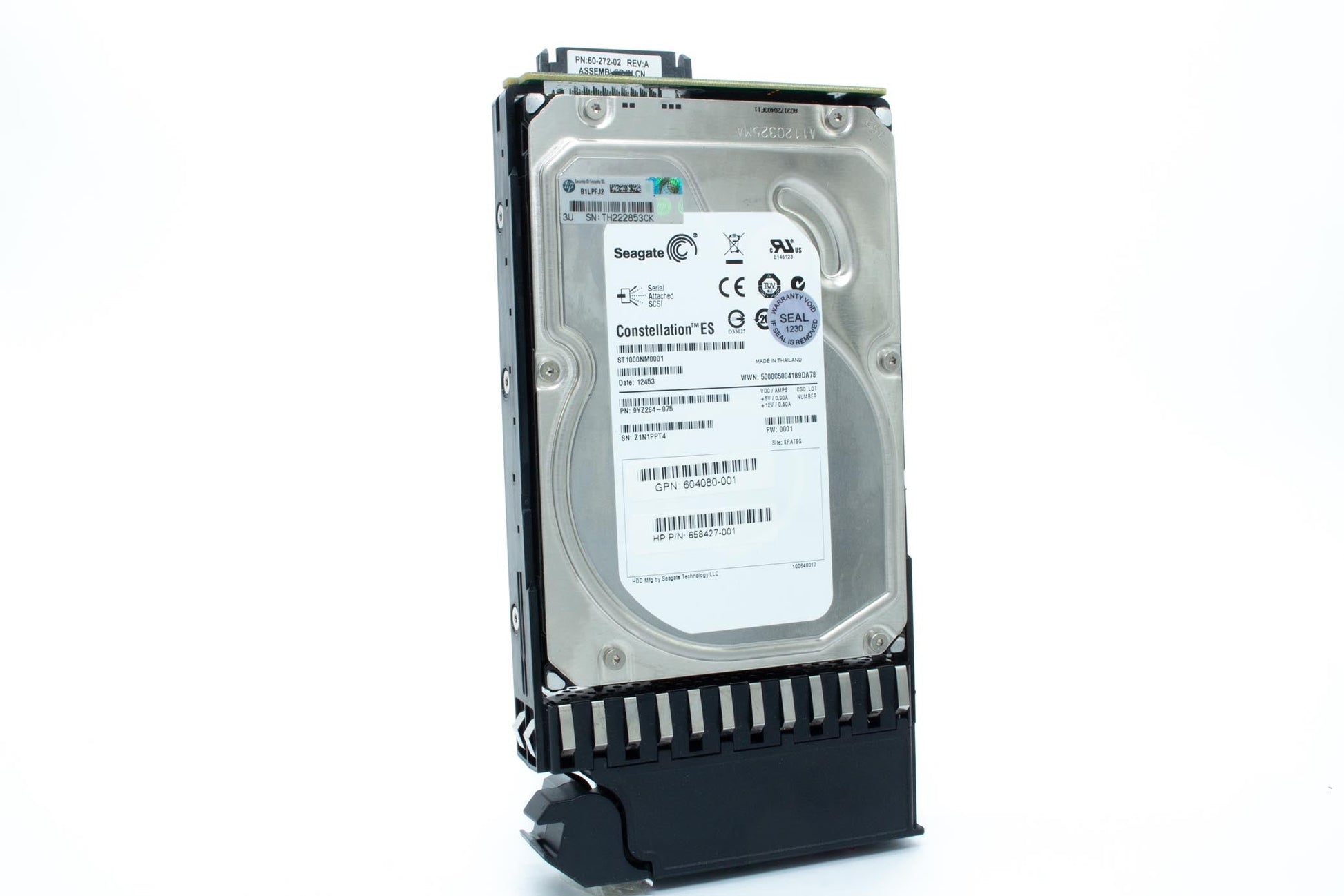

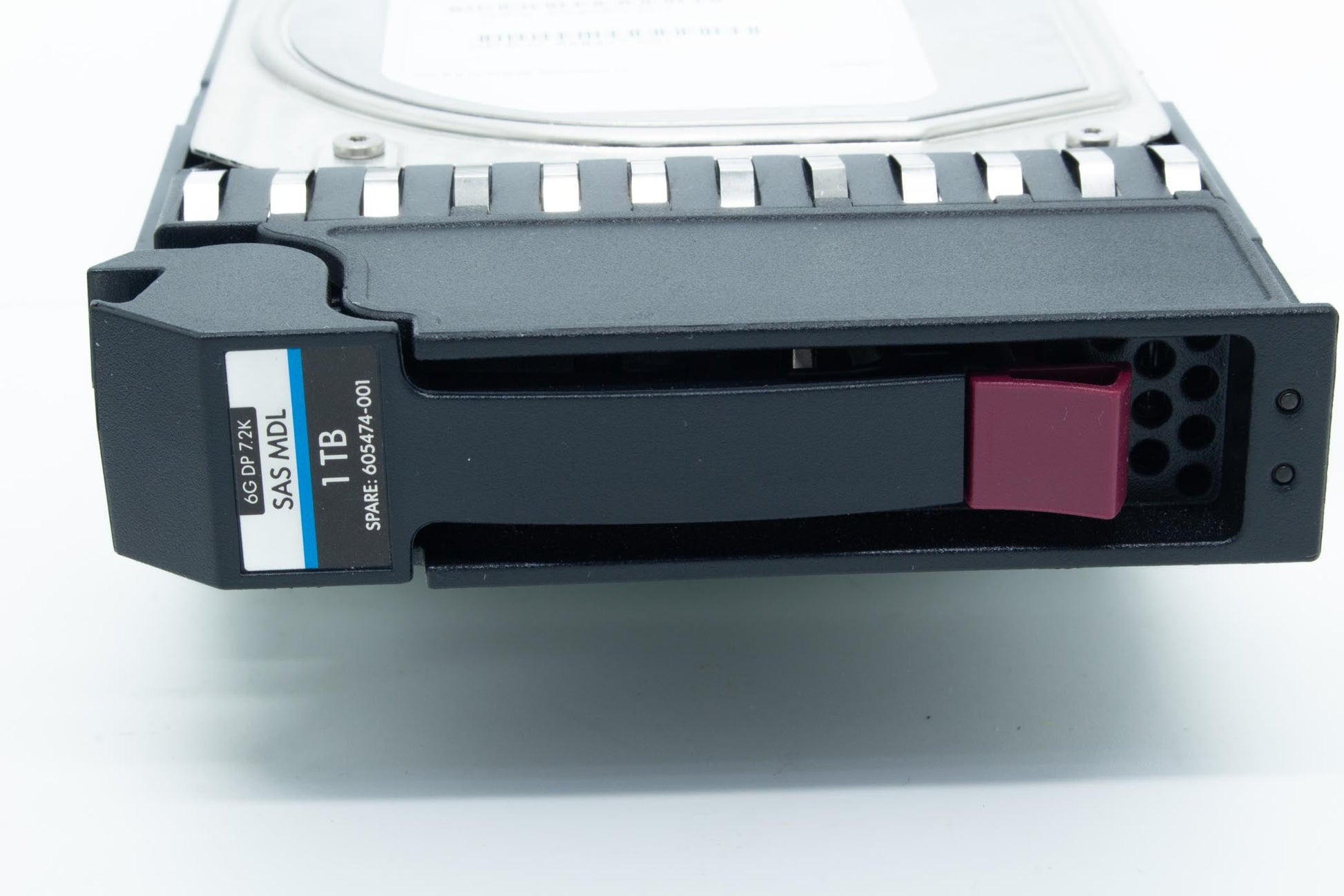

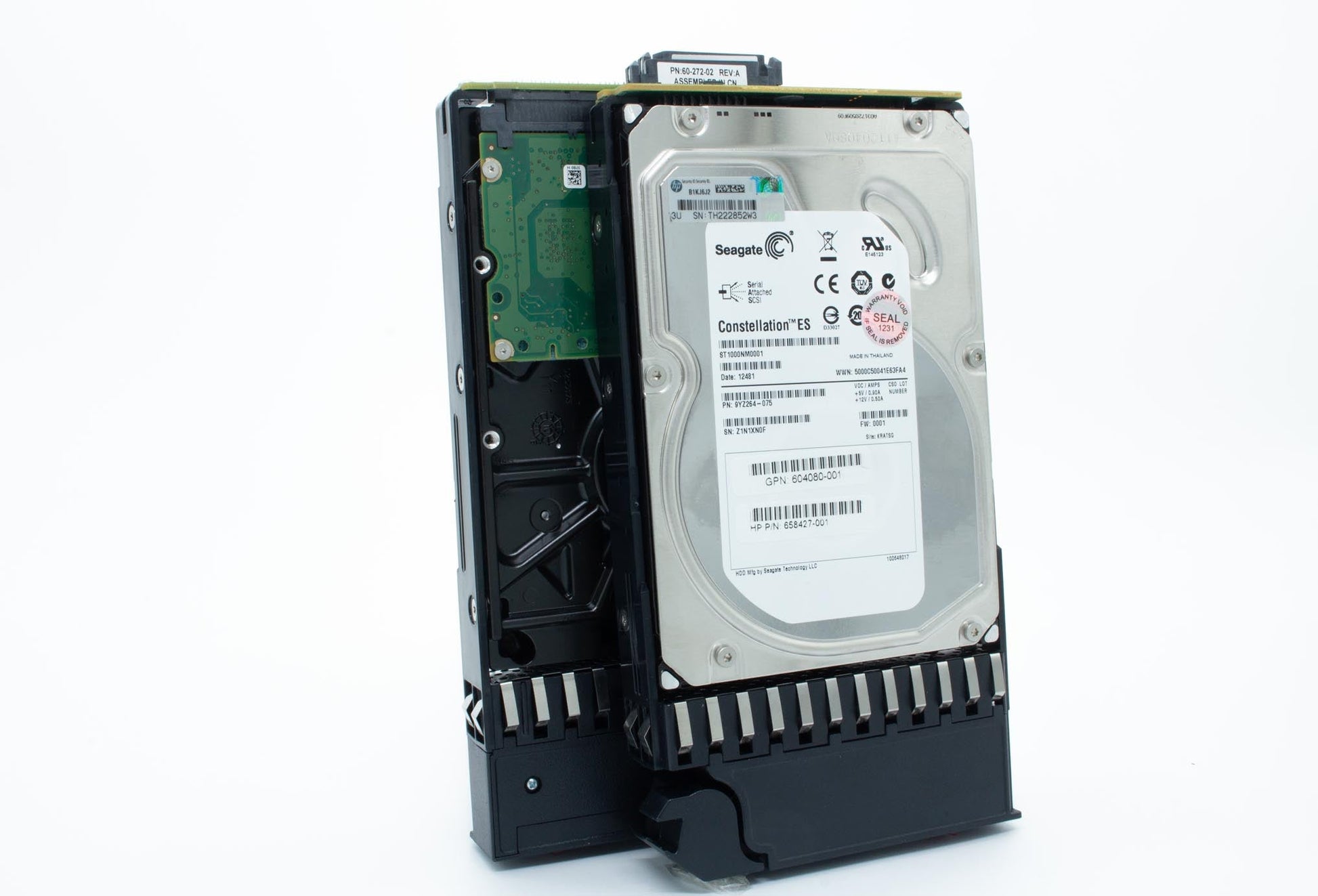

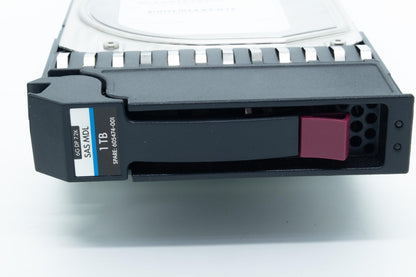

1TB SAS hard drive - 7.200 RPM, 3.5-inch Large Form Factor (LFF)
HP 605474-001 604080-001 P2000 1TB 6G 7.2K 3.5" DP Hard Drive AP861A 658427-001
Overview

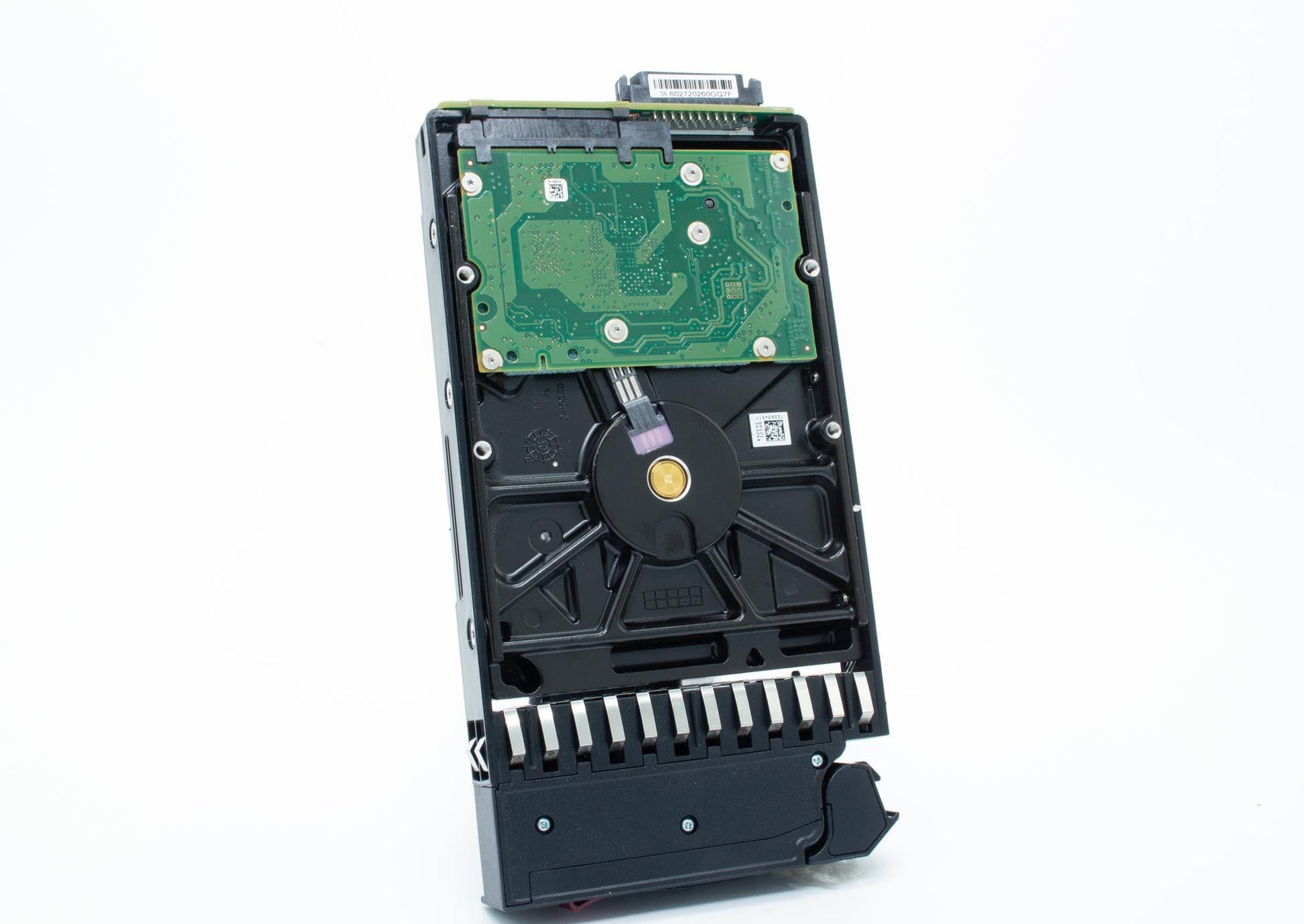

HP MSA2 / MSA2000 controller enclosures and large form factor expansion enclosures accept unique HP SAS disk drive modules with different firmware and different trays than other HP storage arrays and Proliant servers. The disk drives have SAS interposers attached to the back which convert the native dual port SAS interface to an SCA-40 connector. While this SCA-40 connector has the same shape as a Fibre Channel (FC) connector - the drives are NOT utilizing the FC protocol. If you look closely at the interposer - the circuitry is rather simplistic and no bridge / translator chip is attached. The interposer is - more or less - acting as a signal filter and port relocator to connect to the MSA2's proprietary backplane.
Highlights
HP MSA/MSA2 1TB 3.5-inch LFF SAS 6Gb/s 7.2K RPM
Dual Port (DP) Midline (MDL) Hot-Plug Hard Drive
In HP MSA/MSA2 Hard Drive tray w/interposer connector (as pictured)
For HP MSA1040 MSA2040 MSA2050 MSA2000 MSA2000i and
P2000 SAN Storage Arrays
Genuine HP serial number and MSA/MSA2 firmware
Genuine HP manufactured Hard Drive
Specifications
Category StorageWorks HardDrive
Sub-Category 7.2K
Generation SAS MSA 2
Part Number 605474-001
Products ID 475050
Type Hard Drive - Hot-Plug
Capacity 1TB
Interface Type Serial Attached SCSI
Spindle Speed 7200RPM
Ports Dual Port
Speed 6GB/s
